Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

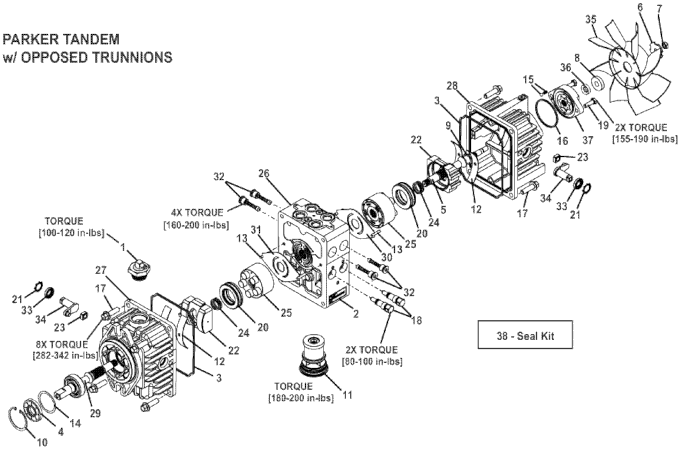

721DT • Parker Tandem Pump with Opposed Trunnions

2015

HP2 Tandem Pump Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

T2 Expansion Tank Adapter

130510

-

O-Ring

126550

2

NOT AVAILABLE

000000

3

Housing Seal Ring

130580

4

Input Seal

125370

5

Pump Shaft

130578

6

Fan Retainer Washer

130432

7

Nylon Insert Nut

253461

8

Fan Hub

130433

9

Thrust Washer

130508

10

Retaining Ring

130404

11

Tandem Transmission Filter

130505

12

Cradle Bearing

130511

13

Dowel Pin

130458

14

Washer

130406

15

Charge Relief Kit

130527

-

Charge Relief Kit

130427

16

Charge Cover Seal Ring

130420

17

T2 Hex Flanged Bolt

271130

18

Bypass Valve

130448

-

Backup Ring

130517

-

O-Ring

130518

19

Hex Head

271023

20

T6 Thrust Bearing

130512

21

Retaining Ring

130402

22

T6 Swashblock

130514

-

T Swashblock

130414

23

T6 Control Block

130516

-

T Control Block

130416

24

T Center Spring

130472

-

T6 Center Spring

130572

25

Piston& Barrel Assembly

130450

-

T6 Piston & Barrel Assembly

130550

26

T Center Block Assembly

130538

-

T6 Center Block Assembly

130540

27

T6 Pump 1 Housing Assembly

130561

-

Pump 1 Housing Assembly

130560

28

Pump 2 16CC Opposed Trunnion Housing

130565

-

Pump 2 12CC Opposed Trunnion Housing

130564

29

Pump 1 T Shaft Assembly

130576

30

Pump 2 T Port Plate

130554

-

Pump 2 T6 Port Plate

130558

31

Pump 1 T Port Plate

130552

-

Pump 1 T6 Port Plate

130556

32

Check Valve Assembly

130446

-

Check Valve Assembly

130444

-

O-Ring

130447

33

H1A 12 Trunnion Seal

125358

34

Tapered Square Trunnion Arm

130515

34

Steel Trunnion Bushing

130520

35

H2 & T Hydro Fan

130431

-

T6 8.3" Fan

130434

36

Thru Shaft Seal

125162

37

Pres Reducing Charge Cover Kit

130528

38

Seal Kit

130500
