Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

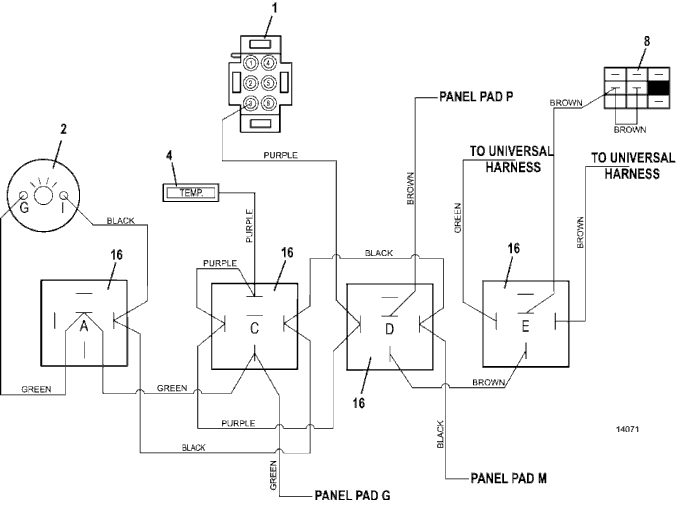

721DT • Wiring Diagram - High Temp

2015

Universal Harness

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Zoned Electric Temperature Gauge

141165

2

Voltmeter Gauge

141203

4

Temperature Indicator Light

182328

8

Switch Push/Pull

183925

16

12VDC Relay w/Diode

184266

Return to 721DT Index Return to Top
