Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

725G2 • Reservoir & Hose Assembly

1998

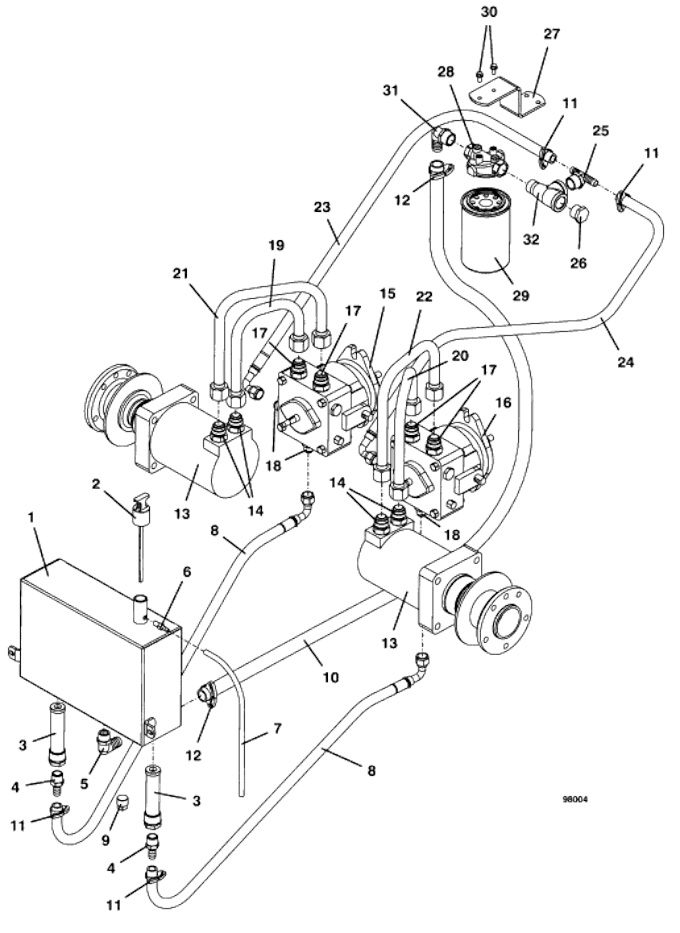

Reservoir and Hose Assembly Diagram

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

700G2 Reservoir Assembly

603713

2

Oil Reservoir Plastic Dipstick

100729

3

Tank Filter

366555

4

Nylon Fitting

363849

5

Nylon Fitting

363853

6

Straight Barb Fitting

363826

7

Clear Vent Hose

821724

8

Hose Assembly

424331

9

Threaded Plug .5 Inch

365520

10

Hydraulic Hose

821804

11

Hose Spring Clamp

280265

12

Plastic Snap Hose Clamp

280281

13

Wheel Motor

391478

14

Adapter Fitting

360070

-

O-Ring

126534

-

O-Ring

126537

15

Right Hydro Pump

391453

16

Left Hydro Pump

391452

17

Adapter Fitting

360065

-

O-Ring

126534

-

O-Ring

126535

18

Steel O-Ring Boss Fitting

363832

-

O-Ring

126527

-

O-Ring

126535

19

Tube Assembly

424625

20

Tube Assembly

424626

21

Tube Assembly

424631

22

Tube Assembly

424632

23

Hose Assembly

424344

24

Hose Assembly

424343

25

Nylon Fitting

363860

26

Hex Head Nylon Plug .75 Inch

365527

27

Oil Filter Mount

732609

28

Filter Base

101026

29

Transmission Oil Filter

100860

30

Hex Whiz Bolt

253173

31

Steel Fitting

363880

32

Tee

366826

Return to 725G2 Index TOP
