Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

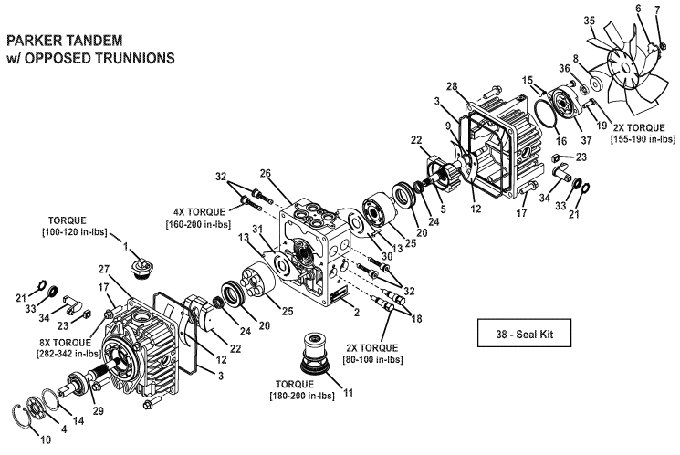

727EFI • Pump Motor Breakdown

2014

Pump Motor Breakdown

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

T2 Expansion Tank Adapter

130510

-

O-Ring

126550

2

Not Available

000000

3

Housing Seal Ring

130580

4

Input Seal

125370

5

Pump 2 Shaft

130578

6

Fan Retainer Washer

130432

6

Fan Retainer Washer

130432

7

Nut with Nylon Insert

253461

8

Fan Hub

130433

9

Thrust Washer

130508

10

Retaining Ring

130404

11

Tandem Transmion Filter

130505

12

Cradle Bearing

130511

13

Dowel Pin

130458

14

Washer

130406

15

Charge Relief Kit

130527

-

Charge Relief Kit

130427

16

Charge Cover Seal Ring

130420

17

T2 Hex Flanged Bolt

271130

18

O-Ring

130518

-

Bypass Valve

130448

-

Backup Ring

130517

19

HD Hex Bolt

271023

21

Retaining Ring

130512

22

T6 Swashblock

130514

-

T Swashblock

130414

23

T6 Control Block

130516

-

T Control Block

130416

24

T Center Spring

130472

-

T6 Center Spring

130572

25

T Piston & Barrel Assembly

130450

-

T6 Piston & Barrel Assembly

130550

26

T Center Block Assembly

130538

-

T6 Center Block Assembly

130540

27

T6 Pump1 Housing Assembly

130561

-

T Pump1 Housing Assembly

130560

28

16cc Pump2 Oppose Trunnion Housing

130565

-

12cc Pump2 Oppose Trunnion Housing

130564

29

T Pump1 Shaft Assembly

130576

30

T Pump2 Port Plate

130554

-

T6 Pump2 Port Plate

130558

31

T Pump1 Port Plate

130552

-

T6 Pump1 Port Plate

130556

32

O-Ring

130447

-

Check Valve Assembly

130444

-

Check Valve Assembly

130446

33

H1A-12 Trunnion Seal

125358

34

Tapered Square Trunnion Arm

130515

-

Steel Trunnion Bushing

130520

35

H2&T Hydro Fan

130431

-

T6 Fan 8.3"

130434

36

Thru Shaft Seal

125162

37

Pressure Reducing Charge Cover Kit

130528

38

Seal Kit

130500
