Genuine OEM Grasshopper® Mower Parts Diagrams

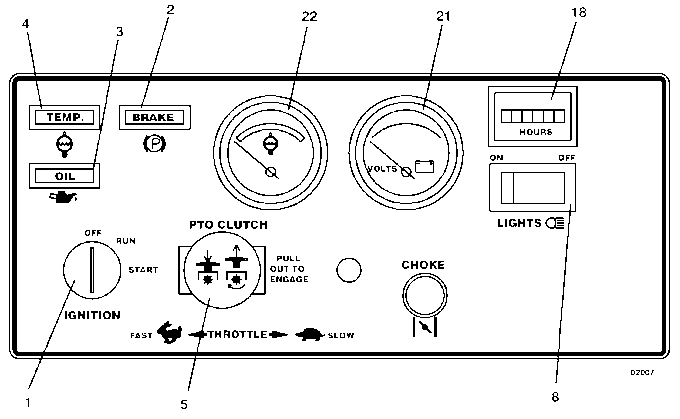

727KW • Console
2004
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart, call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
Switch - Key B & S/Kohler |
183806 |
- |
Key Ignition w/Cover |
101101 |
- |
Nut |
254498 |
- |
Panel Plastic |
422078 |
2 |
Brake Indicator Light |
182326 |
3 |
Oil Indicator Light |
182327 |
4 |
Temperature Indicator Light |
182328 |
5 |
Push/Pull Switch |
183925 |
8 |
Rocker Switch |
184179 |
18 |
Snap-In Hour Meter |
141551 |
21 |
Voltmeter Gauge |
141200 |
22 |
Temp Zoned Electric Gauge |
141160 |
23 |
725A Console Decal |
161133 |
