Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

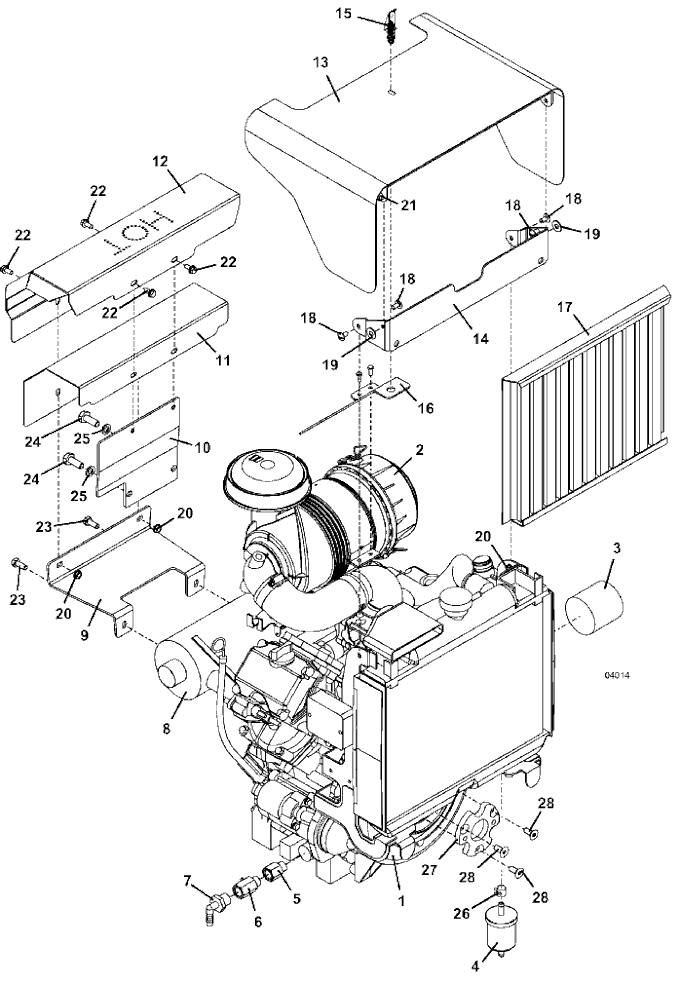

727KW • Engine Assembly

2004

Engine Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

27HP Kawasaki Engine

100187

2

Air Filter - Outer HD

100936

Air Filter - Inner HD

100937

3

Kawasaki Oil Filter

100806

4

Kubota Fuel Pre-Filter

101005

5

Adapter

887121

6

Oil Drain Valve

143610

7

Nylon Fitting

363848

8

27HP Kawasaki Muffler

101224

-

Kawasaki Muffler Gasket

101038

9

Lower Muffler Bracket

754216

10

Shield Mount Bracket

643196

11

Inner Panel Shield

720167

12

Muffler Shield

722732

13

Hood

644331

14

Hood Mount

754207

15

Swell Action Latch

281305

16

Hood Latch Bracket

754208

17

Grille

644669

18

Truss Whiz Bolt

253176

19

Washer

257020

20

Whiz Nut

253025

21

Nylon Insert Nut

253440

22

Hex Whiz Bolt

253173

23

8M HD Hex

271020

24

Hex Bolt

271120

25

Hex Bolt

243445

26

Lock Washer

275580

27

Coupling Adapter

783456

28

Flat Head M8 Cap Screw

270346

Return to 727KW Index Return to Top
