Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

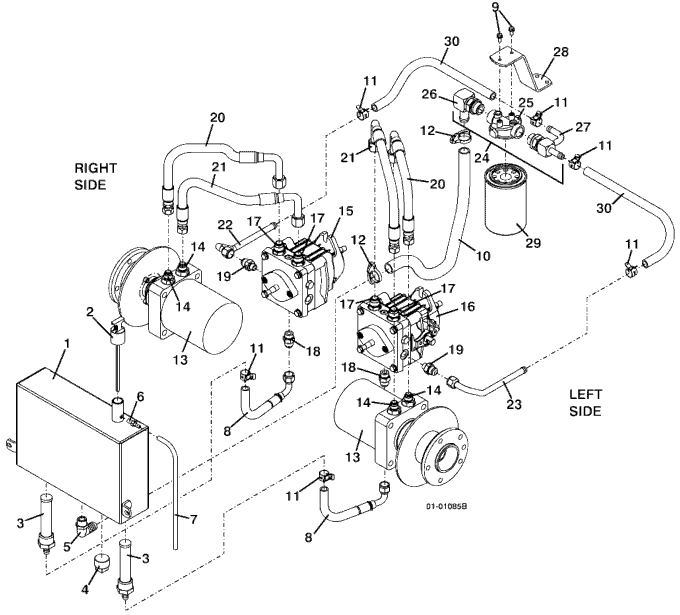

727A • Reservoir and Hose Assembly

2004

Reservoir and Hose Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

RESERVOIR ASSY - 01 - 700G2

603703

2

DIPSTICK - OIL RES PLASTIC

100729

3

STRAINER

366556

4

PLUG

365535

5

FITTING - NYLON

363853

6

FITTING - BARB STRAIGHT

363826

7

HOSE - VENT CLEAR

821724

8

HOSE ASSY

424331

9

BOLT WHIZ HEX

253173

10

HOSE .75 HYDRAULIC

821804

11

CLAMP - HOSE SPRING

280265

12

CLAMP - HOSE - PLASTIC SNAP

280281

13

WHEEL MOTOR W/HUB

603602

14

ADAPTER O-RING

360063

-

O-RING

126527

-

O-RING

126537

15

HYDRO PUMP - RT

391463

-

SEAL

125165

-

SEAL RING - CHARGE COVER SQUARE

130020

16

HYDRO PUMP - LT

391462

-

SEAL

125165

-

SEAL RING - CHARGE COVER SQUARE

130020

17

ADAPTER FITTING

360064

-

O-RING

126527

-

O-RING

126535

18

FITTING STEEL O-RING BOSS

363832

-

O-RING

126527

-

O-RING

126535

19

ADAPTER FITTING

360081

20

HOSE ASSY

424371

21

HOSE ASSY

424372

22

TUBE ASSY

424602

23

TUBE ASSY

424603

24

FILTER BASE ASSY G2

101020

25

BASE - FILTER

101027

26

ADAPTER O-RING 12 BEAD

360076

27

ADAPTER O-RING W/90 ELBOW

360074

28

BASE - OIL FILTER

733124

29

FILTER - OIL TRANSMISSION

100860

30

HOSE - HYDRAULIC

821799

Return to 727KW Index Return to Top
