Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

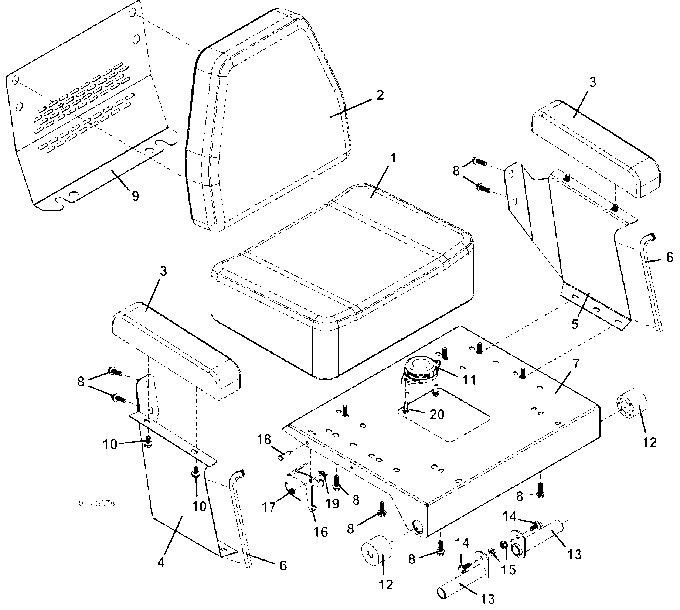

727KW • Seat Assembly

2004

Seat Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Formed Cordura Seat Cushion

321518

2

Cordura Back Cushion

321519

3

Seat Armrest - Cordura

321523

4

Right Armrest Seat Side

723386

5

Left Armrest Seat Side

723387

6

Seat Edge Trim

822630

7

Seat Bottom Panel W/A

643912

8

Hex Flange Whiz Bolt

253193

9

Seat Reinforcement Panel

722388

10

Hex Flange Whiz Bolt

253191

11

Seat Switch

183870

12

Seat Isolator

424095

13

Seat Hinge Pin

644618

14

Hex Flange Whiz Bolt

253192

15

Whiz Nut

253035

16

Seat Latch

724112

17

Torsion Spring

284408

18

Clevis Pin

261280

19

Cotter Ring

260606

20

Hex Whiz Bolt

253175

21

700 Cordura Seat Assembly without Logo

604740
