Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

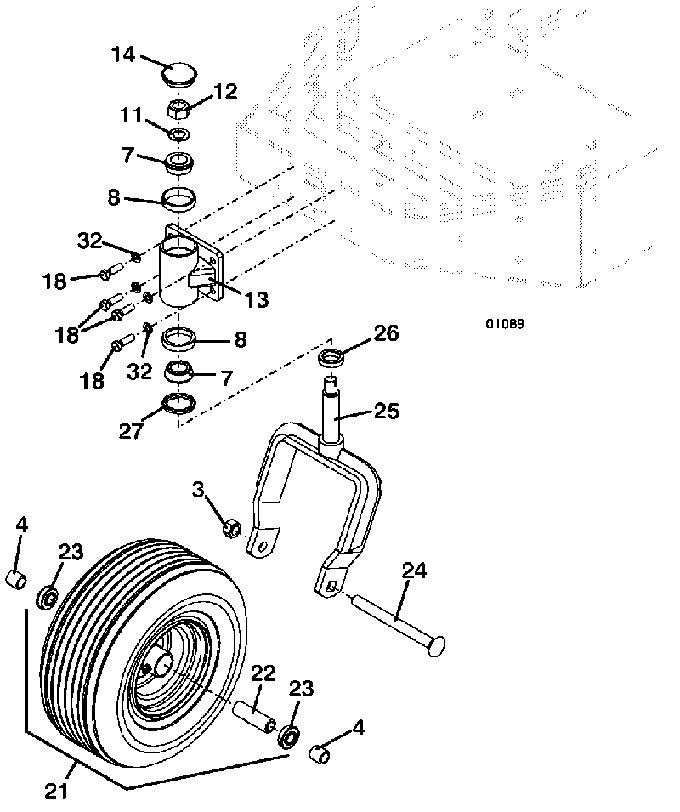

727KW • Tail Wheel Options - 2

2004

Tail Wheel Options 2

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

3

NUT LOCK

253970

4

SPACER AXEL

902425

7

BEARING - TAPER

122522

8

BEARING CUP

123522

11

WASHER - 14 GA BUSHING

257091

12

NUT LOCK

253992

13

PIVOT HOUSING ASSY- RR FORK

604596

14

DUST CAP - DOMED

481434

18

HEX BOLT - GR 8

243334

21

WHEEL & TIRE W/BRG & SPCR 6

483865

-

TIRE - RIB 6

482355

-

WHEEL - 6 - TAN

483306

22

SPACER - REAL WHEEL BRG

902475

23

BEARING BALL

120050

24

CARRIAGE BOLT

247726

25

FORK & LOCK NUT ASSY

604365

26

SPACER

282615

v27

SEAL

125855

32

WASHER LOCK

257412
