Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

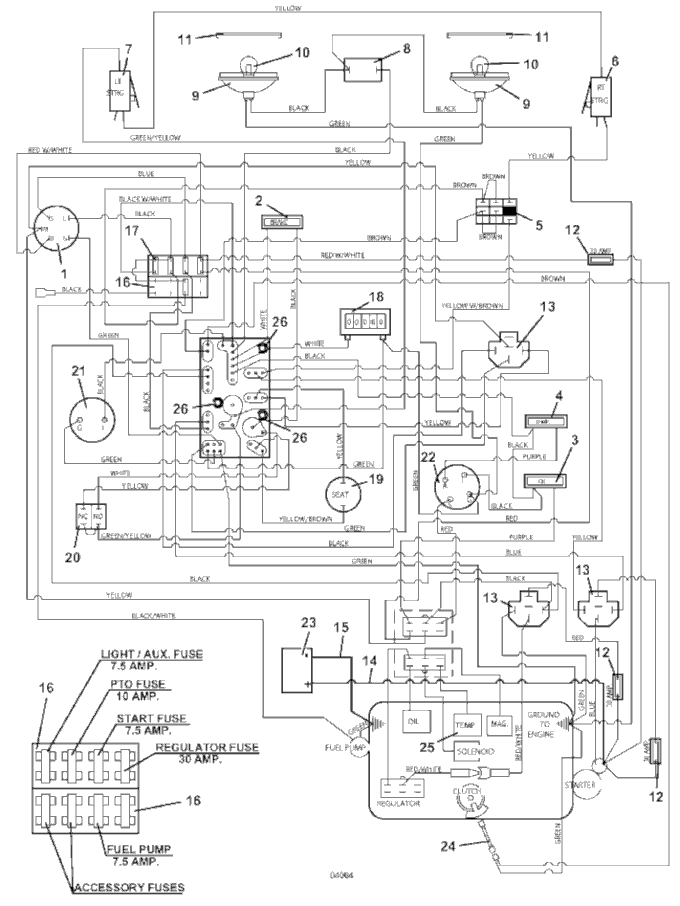

727A • Wiring Diagram

2004

Wiring Diagram

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Key Switch

183806

-

KEY IGNITION W/COVER

101101

-

NUT

254498

-

PANEL PLASTIC

422078

2

Brake Light Indicator

182326

3

Oil Indicator Light

182327

4

Temperature Indicator Light

182328

5

Push/Pull Switch

183925

6

Lever Switch

183860

-

Right Steering Switch Mount

720160

7

Lever Switch

183860

-

Left Steering Switch Mount

720161

8

Rocker Switch

184179

9

Flood Worklamp

182253

10

Worklamp Light Bulb

182005

11

Snap Mount Worklamp Bezel

182251

12

Inline Auto Fuse Holder

181735

-

Auto ATC 30A Fuse

181470

13

12V DC Relay with Mount

184271

-

Pushon Type 1.6MM

184570

-

.250 Faston Terminal

184581

-

5 Way Female Connector

184926

14

42" Red Battery Cable

180340

-

Starter Terminal Boot

425219

15

20" Black Battery Cable

180280

16

Fuse Block

181722

-

1 Wire Fuse Clip

184458

-

2 Wire Fuse Clip

184460

-

Couble Clip Fuse Clip

184472

17

Auto ATC 30A Fuse

181470

-

Auto ATC 7.5A Fuse

181460

-

Auto ATC 10A Fuse

181462

18

Snap-In Hour Meter

141551

19

Seat Switch

183870

20

Brake Interlock Switch

183894

21

Voltmeter Guage

141200

22

Zoned Electric Termperature Guage

141160

23

12V DC Wet Battery

180125

-

12V DC Dry Battery

180126

-

Battery Box

644099

-

Battery Cover

644162

24

Pigtail Cable Assembly

388840

25

Temperature Sender

141218

26

727KW Wiring Assembly

604990

27

725A Console Decal

161133
