Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

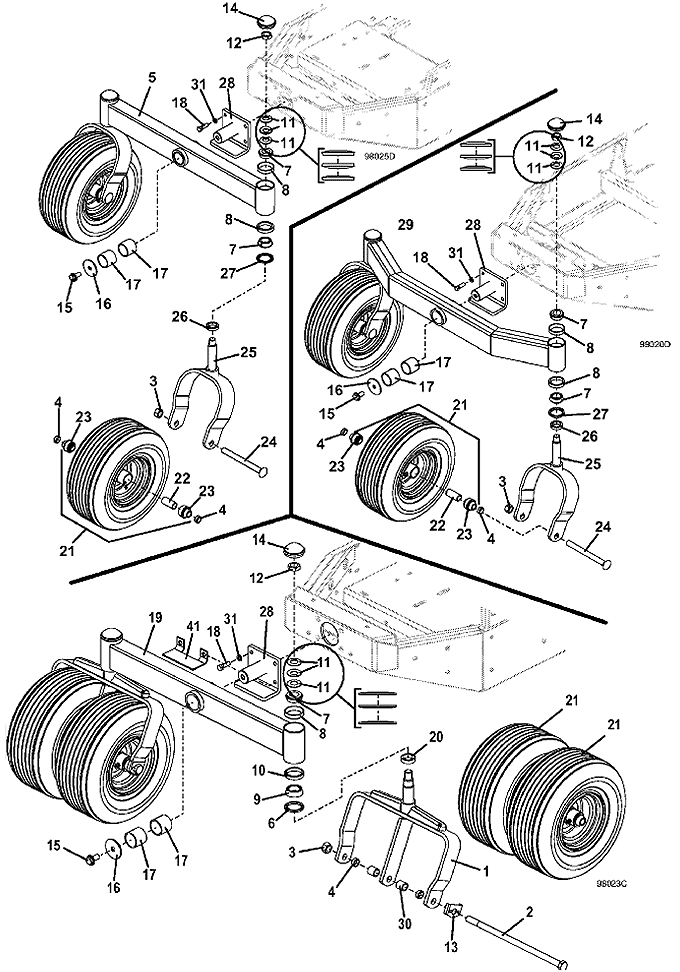

930D2 • Tail Wheel Options - 1

2010½

Tail Wheel Options

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Dual Fork & Lock Nut Assembly

604366

2

Hex Bolt .625-11X14

243922

3

Lock Nut .625-11

253970

4

Axle Spacer

902422

5

Dual Wheel Beam

824510

6

Seal

125855

7

Taper Bearing

122522

8

Bearing Cup

123522

9

Taper Bearing

122523

10

Bearing Cup

123521

11

Spring Washer

257320

12

Nylon-Top Jam Lock Nut

254505

13

Fork Bolt Lock

723008

14

Domed Dust Cap

481434

15

Whiz Bolt

253243

16

Washer

257061

17

Reamed Oilte Bearing

833275

18

GR 8 Hex Bolt

243334

19

Dual Wide Beam

824508

20

Spacer

830420

21

13 x 6.5 x 6 Wheel Assembly with Bearings

603975

-

13 x 6.5 x 6 Ribbed Tire

482355

-

6 x 4.5 Tan Wheel without Bearings

483306

22

Center Rear Axle Spacer

902429

23

DP Wheel Ball Bearing

120048

24

Carriage Bolt

247725

25

Tail Wheel Tapered Bearing Fork

645221

26

Spacer

282615

27

Seal

125855

28

Rear Axle Pivot Assembly

643631

29

Offset Beam

824516

30

Axle Spacer

902425

31

Lock Washer

257412

41

Axle Beam Spacer

900160
