Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

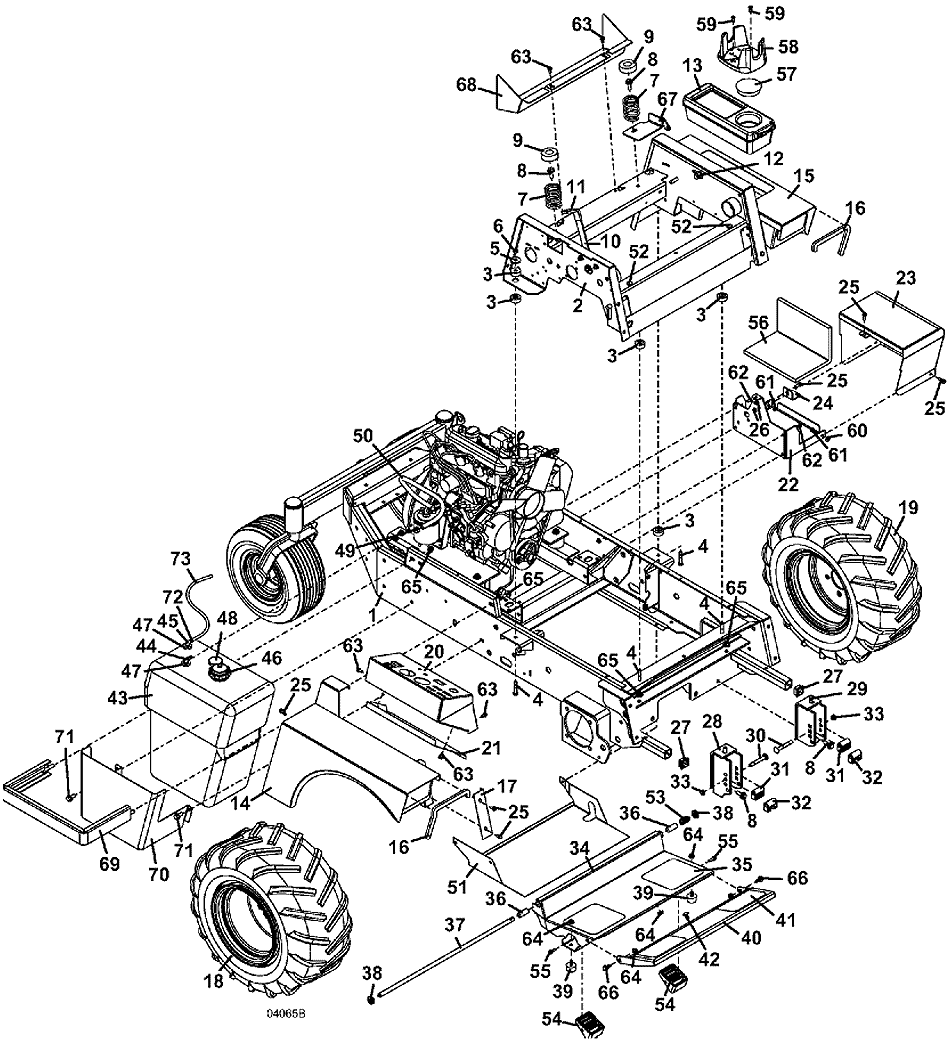

930D2 • Tractor Assembly

2010

Click on diagram to view super-sized image.

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

900 Frame- Lower Front Ports

644285

2

G2 Upper Frame 2005

643872

3

Step Bushing

257037

4

Hex Bolt

243220

5

Washer

774020

6

Nylon Insert Nut

253450

7

Compression Spring

283516

8

Flange Whiz Bolt

253203

9

Seat Spring Cap

422127

10

Throttle Assembly

603859

-

Throttle Control Cable Assembly

323675

-

Throttle Lever Stop

722009

-

Heavy Duty Throttle Stop

722736

11

Handle Grip

422150

12

Spacer

902280

-

Hex Bolt

243335

-

Washer

257040

13

Tool Box

422040

14

Fender w/Decal 700/900S Right

693210

-

930D Trim Decal - Right

163492

15

Fender w/Decal 700/900S Left

693211

-

930D Trim Decal - Left

163493

16

Fender Edge Trim - 700/900

822635

17

Fender Cover Panel - Right

722062

18

Wheel & Bar Tread Tire - Right

483942

-

5 Bolt Wheel Only

483420

-

Bar Tread Tire Only

482483

-

Wheel & Turf Tire, 22"

483946

-

Turf Tire Only, 22"

482473

19

Wheel & Bar Tread Tire - Left

483943

-

Turf Tire Only, 22"

482473

-

Turf Tire

482477

-

Bar Tread Tire Only

482483

-

5 Bolt Wheel Only

483420

-

Wheel & Turf Tire, 22"

483946

20

Console for Liquid-Cooled Diesel, with Decal

693104

21

96 Console Fill Panel

721152

22

Battery Box w/o Draw Latch

644163

23

Battery Box Lid w/o Draw Latch

644478

24

Battery Hold Down Bracket

754135

25

Hex Whiz Bolt

253175

26

Whiz Nut

253025

27

Square Plastic Plug

422065

28

QD 700/900 Deck Mount - Right

643092

29

QD 700/900 Deck Mount - Left

643093

30

Special Carriage Bolt

247280

31

Deck Mount Bushing

282575

32

Floating Deck Mount Bushing

282576

33

Nylon Insert Nut

253460

34

Adjustable Foot Platform Assembly - 700/900

604346

35

Foot Rest Tread

420905

36

Nylon Bearing

422615

37

Foot Platform Pivot Rod - 700

780673

38

Nylon Insert Nut

253470

39

Rubber Bumper

424052

40

Foot Platform Extension - 700

603301

41

Foot Rest Extension Tread

420904

42

Carriage Bolt

247130

43

8 Gallon Diesel Fuel Tank Assembly

604846

44

Fuel Tube

363930

45

Fuel Tube

363924

46

Screw-on Diesel Fuel Cap

100211

47

Grommet

101875

48

In-Tank Fuel Gauge

141144

-

Grommet

424275

49

Spring Hose Clamp

280261

50

928D Fuel Line

821716

51

Trash Shield - G2

721383

52

Rubber Bumper

424015

53

Compression Spring

283312

54

Footrest Isolator Block

424100

55

Hex Bolt

243026

56

Battery Tray Pad

427278

57

Cup Hole Plug

422066

58

Cup Holder

150225

59

Cap Screw

259030

-

Nut

254436

60

Washer

257020

61

Nylon Insert Nut

253440

62

Truss Whiz Bolt

253176

63

Hex Whiz Bolt

253173

64

Whiz Nut

253035

65

Whiz Nut

253043

66

Hex Flange Whiz Bolt

253192

67

Brake Pin Reinforcement

729230

68

928D I-Coupler Shield

722765

69

8 Gallon Fuel Tank Mount

644826

70

8 Gallon Tank Shield

723339

71

Whiz Bolt

253200

72

Spring Hose Clamp

280257

73

300S Fuel Line Return Hose

821741

74

Decal Set - 930D

605345

return to 930D2 index return to top of page
