930D2 • Reservoir & Hose Assembly

2012

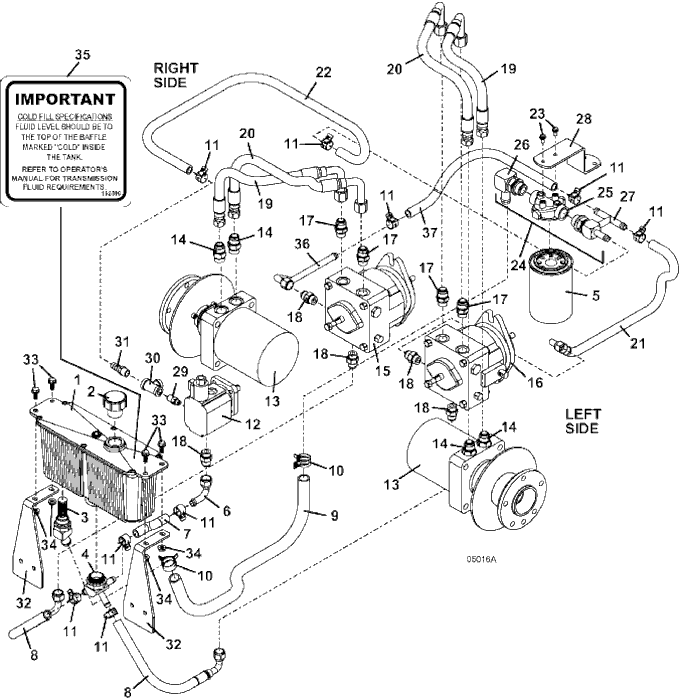

Reservoir and Hose Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

G2 Oil Tank Assembly with Strainer

101692

2

Fill Cap

100760

-

Gasket - Oil Reservoir Cap

420339

3

Fitting w/Diffuser

366571

4

Triple Barb Fitting

366570

5

Transmission Oil Filter

100860

6

Fitting

363857

7

Hydraulic Hose

821781

8

Hose Assembly

424349

9

.75 Hydraulic Hose

821804

10

Spring Hose Clamp

280268

11

Spring Hose Clamp

280266

12

Hydraulic Pump with Solenoid Valve

290074

-

Seal

125166

13

Wheel Motor with Hub

603604

14

Adapter Fitting

360069

-

O-Ring

126529

-

O-Ring

126537

15

Hydro Pump - right

391453

16

Hydro Pump - left

391452

17

Adapter Fitting

360064

-

O-Ring

126529

-

O-Ring

126535

18

Steel O-Ring Boss Fitting

363832

-

O-Ring

126527

-

O-Ring

126535

19

Hose Assembly

424378

20

Hose Assembly

424379

21

Hose Assembly

424344

22

.5 Hydraulic Hose

821806

23

Hex Whiz Bolt

253173

24

Filter Base Assembly

101021

25

Filter Base

101027

26

12 Bead O-Ring Adapter

360076

27

3 Bead O-Ring Adapter

360075

28

928DS Oil Filter Mount

732614

29

O-Ring Adapter

360040

30

Tee

366810

31

8RLA-4MP Brass Hose Insert

360259

32

Aluminum Oil Tank Mount - Right

755128

33

Hex Flange Whiz Bolt

253192

34

Whiz Nut

253035

35

Oil Specification Decal

162580

36

Tube Assembly

424602

37

Hydraulic Hose

821799
