Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

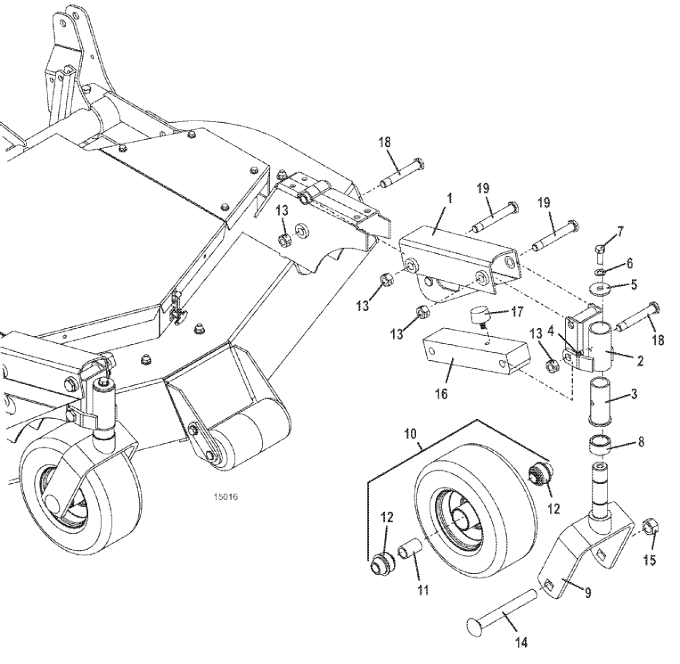

3344 Deck • Wheel Lift Assembly

2019

Wheel Lift Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1 Right Lift Channel 33/34 Series 644461
  Left Lift Channel 33/34 Series 644462
2 Right Fork Mount with Bearing 603351
  Left Fork Mount with Bearing 603352
3 Sintered Flanged Bushing 833260
4 Zerk Grease Fitting 280776
5 Washer 774014
6 Lock Washer 257412
7 Hex Bolt 243331
8 Spacer 902541
9 90 Series Deck Fork 604350
  O-Ring 425514
10 Wheel & Tire Assembly (Semi-Pnuematic) 603973
11 Axle Spacer 423751
12 Wheel Bearing 120048
13 Lock Nut 253930
14 Carriage Bolt 247715
15 Lock Nut 253970
16 Deck Stabilizer with Bumper 822312
17 Rubber Bumper 424053
18 Hex Bolt 243609
19 Hex Bolt 243614

Return to 3344 2019 Index Top
