Genuine OEM Grasshopper Lawn Mower Parts

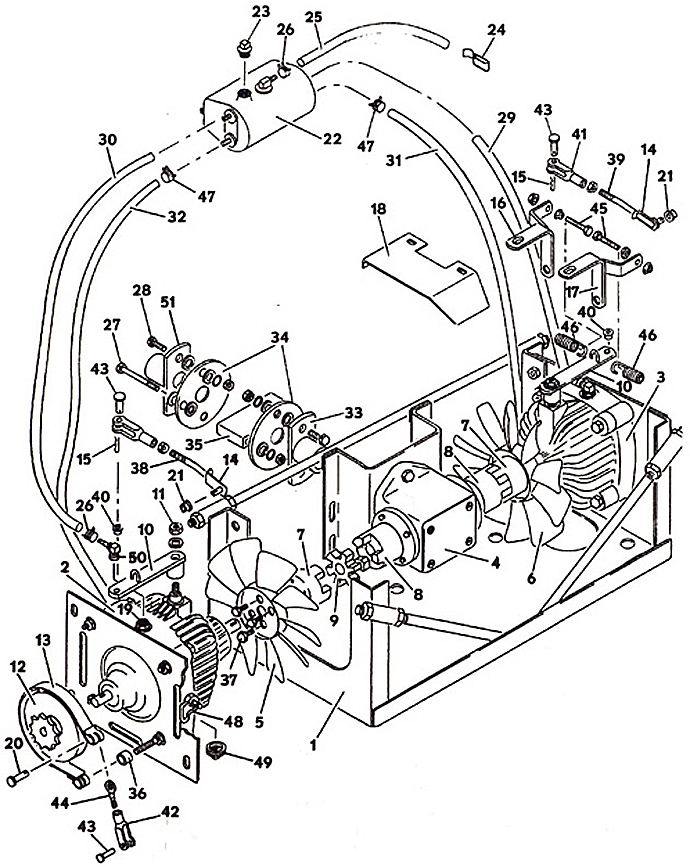

Genuine OEM Grasshopper® Mower Parts Diagrams

1212 • Drive Assembly

1988

Drive Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Hydro Drive Mount

643537

2

counter-clockwise Hydrostatic Drive with Adapter

391429

3

clockwise Hydrostatic Drive with Adapter

391430

4

Gearbox

390220

5

counter-clockwise Nylon Fan

320856

6

clockwise Nylon Fan

320857

7

Flex Coupling

831020

8

Coupler

388415

9

Spider Coupler

388500

10

1212/400 Control Arm

643054

11

Nut

253890

12

Sprocket & Drum Assembly

417515

13

Brake Band Assembly

481115

14

Clip Backing

722012

15

Hair Pin

260520

16

Mount

643608

17

Mount

643609

18

Fan Shroud

720185

19

Adapter

830345

20

Clevis Pin

261340

21

Nylon Bearing

422520

22

Reservoir Assembly

603705

23

Plug

365516

24

Clip

280392

25

Hose

821722

26

Hose Clamp

280257

27

Bolt

243355

28

Bolt

243330

29

Hose

821712

30

Hose

821748

31

Hose

821732

32

Hose

821756

33

Hub

824545

34

Coupling Disc

821530

35

Coupling Block

783705

36

Spacer

902280

37

Screw

250169

38

Steering Linkage Rod

730270

39

Steering Linkage Rod

730271

40

Nylon Bearing

422540

41

Clevis Yoke

265537

42

Clevis Yoke

265538

43

Clevis Pin

261284

44

Eye Bolt

830018

45

Bolt

243035

46

Extension Spring

283823

47

Hose Clamp

280260

48

Formed Hydro Relief Spring

284205

49

Reservoir Adapter

422010

50

90 Degree Barbed Fitting

363827

51

Flex Coupling Hub

824548

52

Woodruff Key

281823

53

Woodruff Key

281828

54

Woodruff Key

281833
