Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

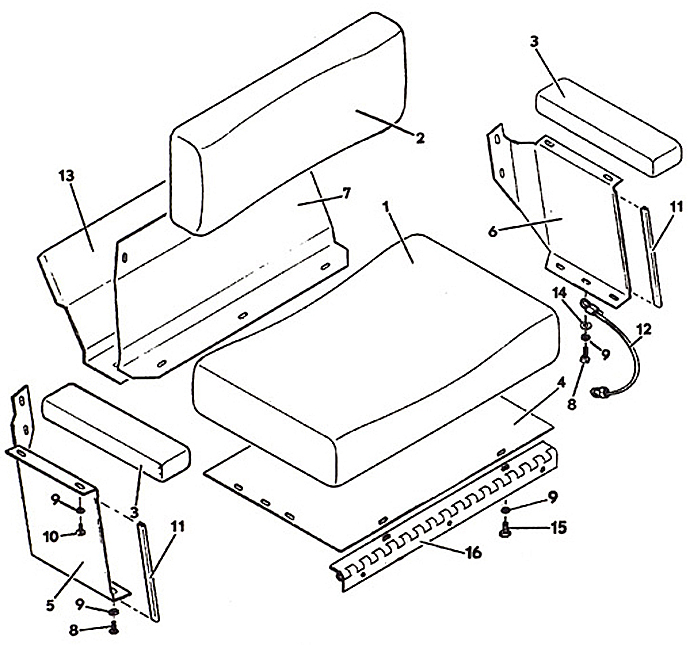

1212 • Seat Assembly

1989

Seat Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Seat Cushion

321505

2

Seat Back Cushion

321504

3

Seat Armrest

321501

4

Bottom Seat Panel

771070

5

Right Side Seat Member

724310

6

Left Side Seat Member

724311

7

Back Seat Panel

721280

8

Screw

243205

9

Washer

257410

10

Bolt

243195

11

Seat Edge Trim

822630

12

Seat Cable

603210

13

Air Deflector

722460

14

Washer

257030

15

Bolt

243210

16

Seat Hinge

820165

17

21" Seat Assembly

603761

Return to 1212 Index Return to Top
