Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

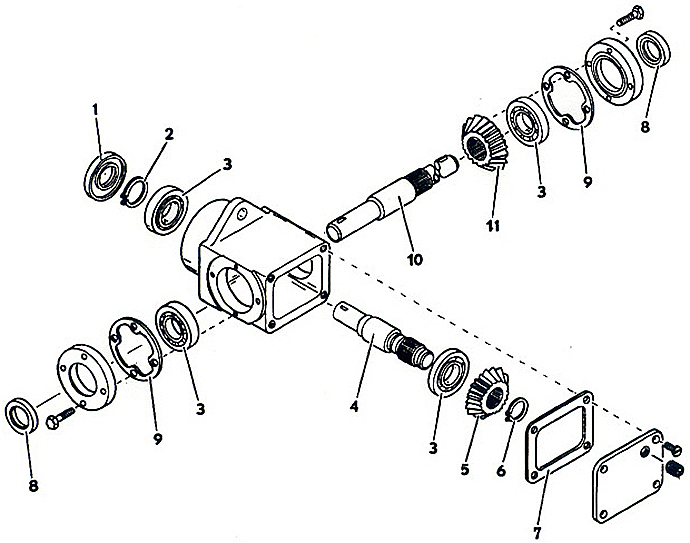

1212 • T-Drive Gearbox Assembly

1989

T-Drive Gearbox Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Seal

125339

2

External Retainer

263540

3

Ball Bearing

120071

4

Shaft

393513

5

Bevel Gear

392500

6

External Retainer

263530

7

Gasket

420200

8

Seal

125336

9

Gasket

420201

10

Shaft

393518

11

Bevel Gear

392501

12

.875 "T" Gearbox Assembly

390220

Return to 1212 Index Return to Top
