Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

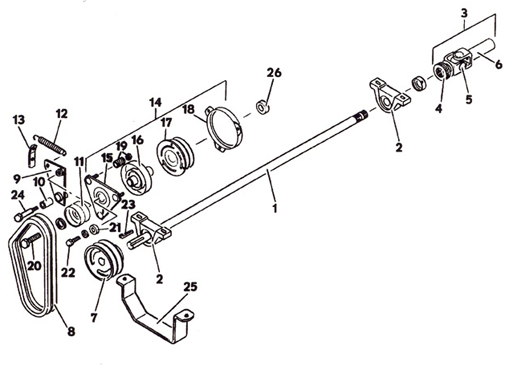

1822K • PTO Shaft & Clutch Assembly

1988

PTO Shaft and Clutch Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Power Shaft

393757

2

Pillowblock Bearing

122044

3

UN Half Shaft

398914

4

Splined Quick Disconnect Yoke

401019

5

Cross & Bearing

121010

6

Yoke w/Sleeve

401015

7

Sheave

415650

8

Belt

381914

9

PTO Idler Arm Assembly

603440

10

Nylon Bearing

422585

11

Idler

393175

12

Extension Spring w/Swivel

283820

13

Idler Bracket

732835

14

Clutch Assembly

604180

15

Field Assembly

388796

16

Rotor Assembly

388797

17

Armature w/Pulley

388792

18

Brake Drum

388793

19

Spring/Nut Assembly

388791

20

Bolt

243810

21

 Retainer Washer

883801

22

Bolt

243344

23

Key

281588

24

Bolt

259745

25

Guard

733147

26

Spacer

282622

Return to 1822K Index Return to Top
