Genuine OEM Grasshopper® Mower Parts Diagrams

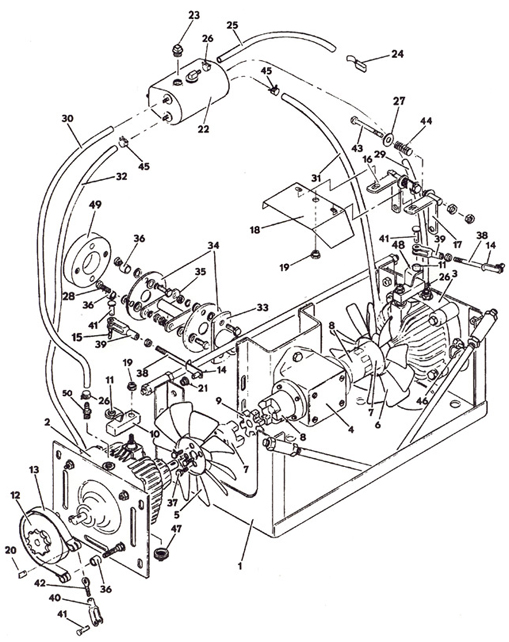

1822K • Drive Assembly

1988

Drive Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Hydro Mount

643543

2

Hydrostat  CCW w/Adapter

391429

3

Hydrostat CW w/Adapter

391430

4

Gearbox

390220

5

Nylon Fan - CCW

320856

6

Nylon Fan - CW

320857

7

Flex Coupling

831020

8

Coupler

388415

9

Spider Coupler

388500

10

Transmission Control Arm

643051

11

Nylon Bearing

422540

12

Sprocket & Drum Assembly

417515

13

Brake Band Assembly

481115

14

Clip Backing

722012

15

Hair Pin

260520

16

Mount - Right Fan Shroud

643564

17

Mount - Left Fan Shroud

643565

18

Shroud

724149

19

Nut

254455

20

Clevis Pin

261340

21

Nylon Bearing

422520

22

Reservoir Assembly

603705

23

Plug

365516

24

Clip Body

280392

25

Hose

821722

26

Hose Clamp

280257

27

Washer

257040

28

Bolt

243330

29

Hose

821712

30

Hose

821748

31

Hose

821732

32

Hose

821756

33

Flex Coupling Hub

824545

34

Flex Coupling Disc

821530

35

Coupling Connector

643222

36

Spacer

902280

37

Screw

250169

38

Steering Linkage Rod

730289

39

Clevis Yoke

265537

40

Clevis Yoke

265538

41

Clevis Pin

261284

42

Eye Bolt

830018

43

Bolt

243366

44

Compression Spring

283320

45

Hose Clamp

280260

46

Hydro Spring

284205

47

Reservoir Adapter

422010

48

Control Arm

643052

49

Coupling Adapter

941350

50

Fitting

280922
