Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

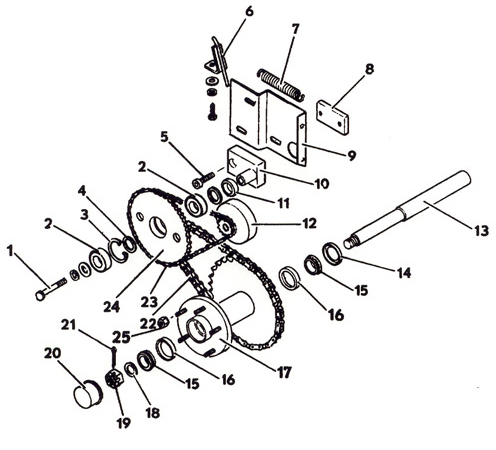

1822K • Final Drive

1988

Final Drive

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Bolt

243615

2

Bearing

120079

3

Internal Retainer

263208

4

Washer

257104

5

Screw

259636

6

Bracket

824512

7

Extension Spring w/Swivel

283820

8

Plate

283820

9

Mount - Right

643588

-

Mount - Left

643587

10

Sprocket Mount

603581

11

Spacer

282615

12

Sprocket & Drum Assembly

417515

13

Axle

883264

14

Seal

125525

15

Bearing

122522

16

Bearing Cup

123522

17

Hub Assembly

603425

-

Lug Bolt

248575

18

Washer

257091

19

Nut

254502

20

Dust Cap

481432

21

Cotter Pin

260670

22

Chain

385471

23

Chain

385270

24

Sprocket Cluster Assembly

603236

25

Nut

254472
