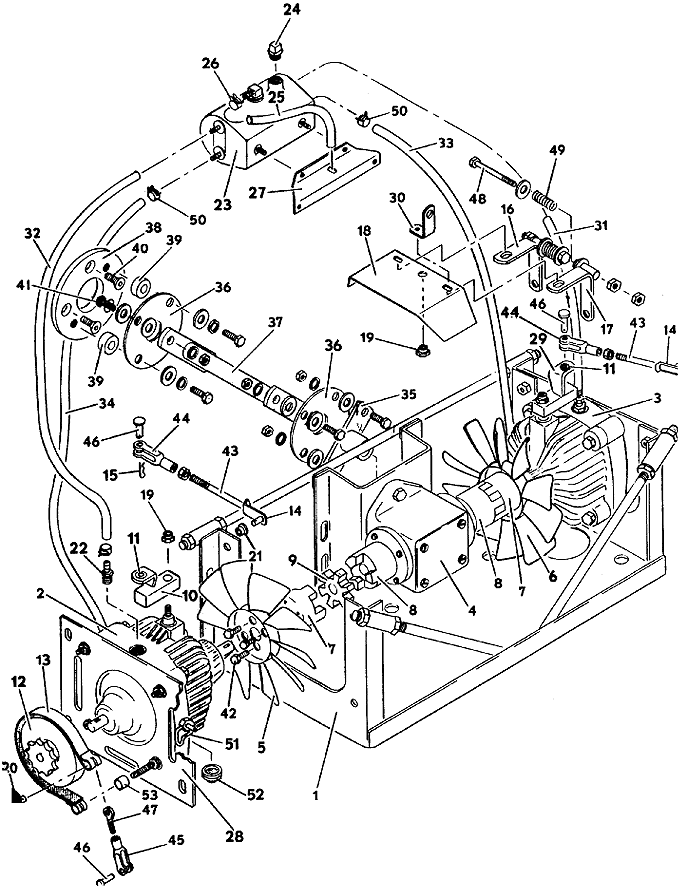

2132 Drive Assembly - 1987
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 643543 - Inverted Hydro Drive Mount | Call For Details | |
| 2 | 391429 - right counter-clockwise Hydrostatic Drive with Adapter | Add To Cart | |
| 3 | 391430 - clockwise Hydrostatic Drive with Adapter | Call For Details | |
| 4 | 390220 - .875 T Gearbox | Add To Cart | |
| 5 | 320856 - 7 inch counter-clockwise Nylon Fan | Add To Cart | |
| 6 | 320857 - 7 inch clockwise Nylon Fan | Add To Cart | |
| 7 | 831020 - Flex Coupling | Add To Cart | |
| 8 | 388415 - Coupler | Add To Cart | |
| 9 | 388500 - Spider Coupler | Add To Cart | |
| 10 | 643051 - Top Transmission Control Arm | Call For Details | |
| 11 | 422540 - Nylon Bearing | Add To Cart | |
| 12 | 417515 - Sprocket & Drum Assembly | Add To Cart | |
| 13 | 481115 - Brake Band Assembly | Add To Cart | |
| 14 | 722012 - Clip Backing | Add To Cart | |
| 15 | 260520 - Hair Pin | Add To Cart | |
| 16 | 643564 - right Fan Shroud Mount | Call For Details | |
| 17 | 643565 - left Fan Shroud Mount | Call For Details | |
| 18 | 724149 - Fan Shroud | Add To Cart | |
| 19 | 254455 - Plastic Shoulder Nut | Add To Cart | |
| 20 | 261340 - Clevis Pin | Add To Cart | |
| 21 | 422520 - Nylon Bearing | Add To Cart | |
| 22 | 280922 - Hydraulic Hose Barbed Fitting | Call For Details | |
| 23 | 603705 - Reservoir Assembly | Add To Cart | |
| 24 | 365516 - 3/8 inch Threaded Plastic Plug | Add To Cart | |
| 25 | 821719 - Clear Vent Hose | Call For Details | |
| 26 | 280260 - Spring Hose Clamp | Add To Cart | |
| 27 | 724139 - Reservoir Mounting Bracket | Call For Details | |
| 28 | 775255 - Bolt | Call For Details | |
| 29 | 643052 - Left Control Arm | Add To Cart | |
| 30 | 732528 - Vent Hose Bracket | Call For Details | |
| 31 | 821712 - Clear Vent Hose | Add To Cart | |
| 32 | 821748 - Clear Vent Hose | Add To Cart | |
| 32 | 821732 - Black Supply Hose | Add To Cart | |
| 34 | 821756 - Black Supply Hose | Add To Cart | |
| 35 | 824545 - Flex Coupling Hub | Call For Details | |
| 36 | 821530 - Flex Coupling Disc | Add To Cart | |
| 37 | 643226 - Coupling Connector | Add To Cart | |
| 38 | 783458 - Coupling Adapter | Add To Cart | |
| 39 | 902318 - Coupling Spacer | Add To Cart | |
| 40 | 270346 - M8 Flat Head Cap Screw | Add To Cart | |
| 41 | 830040 - Hex Bolt | Add To Cart | |
| 42 | 250169 - Hex Machine Screw | Add To Cart | |
| 43 | 730289 - Steering Linkage Rod | Add To Cart | |
| 44 | 265537 - Clevis Yoke | Add To Cart | |
| 45 | 265538 - Clevis Yoke | Add To Cart | |
| 46 | 261284 - Clevis Pin | Add To Cart | |
| 47 | 830018 - Eye Bolt | Add To Cart | |
| 48 | 243366 - Hex Bolt | Add To Cart | |
| 49 | 283320 - Compression Spring | Add To Cart | |
| 50 | 280260 - Spring Hose Clamp | Add To Cart | |
| 51 | 284205 - Formed Hydro Relief Spring | Add To Cart | |
| 52 | 422010 - Reservoir Adapter | Add To Cart | |
| 53 | 902280 - Spacer | Add To Cart |
