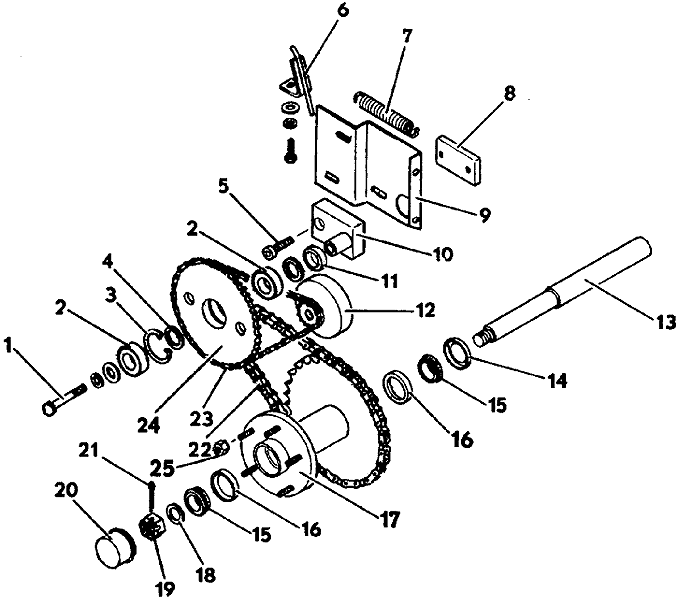

2132 • ST22 Final Drive Assembly

1987

Final Drive Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Hex Bolt

243615

2

Ball Bearing

120079

3

Internal Retainer

263208

4

Washer

257104

5

Socket Head Screw

259636

6

Spring Tensioner Bracket

824512

7

Extension Spring with Swivel

283820

8

Clamp Plate

824615

9

right 22 Drive Mount

643588

-

left 22 Drive Mount

643587

10

Sprocket Cluster Mount

603581

11

Spacer

282615

12

Sprocket & Drum Assembly

417515

13

#50 Drive Axle

883264

14

Seal

125525

15

Taper Bearing

122522

16

Bearing Cup

123522

17

Hub Assembly

603425

-

Wheel Stud Bolt

248570

18

14 Ga Bushing Washer

257091

19

Nut

254502

20

Dust Cap

481432

21

Cotter Pin

260670

22

Chain

385471

23

Chain

385270

24

Sprocket Cluster Assembly

603236

25

Lug Nut

254472
