Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

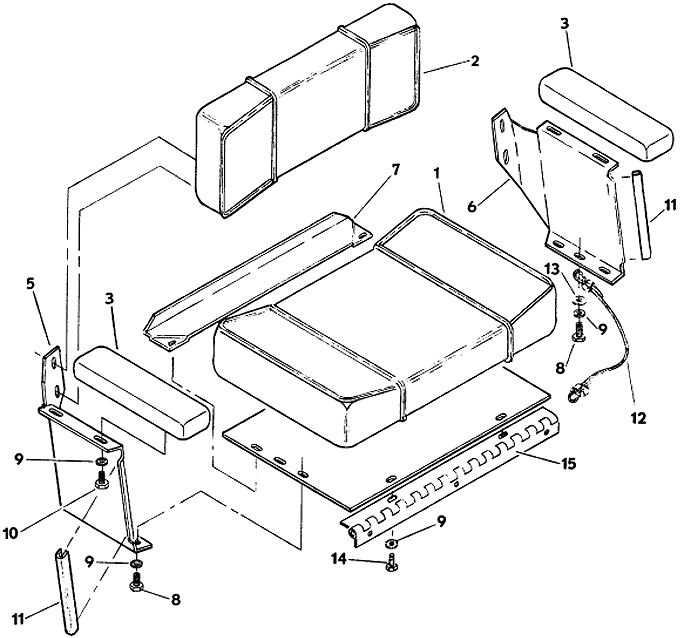

2132 • Seat Assembly

1987

Seat Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Formed Seat Cushion

321507

2

Back Cushion

321509

3

Seat Armrest

321501

4

Seat Bottom Panel

771070

5

right Seat Side Member

724310

6

left Seat Side Member

724311

7

Seat Bottom Reinforcement

724205

8

Hex Bolt

243205

9

External Star Washer

257410

10

Hex Bolt

243195

11

Seat Edge Trim

822630

12

Seat Cable

603210

13

Washer

257030

14

Hex Bolt

388792

15

Seat Hinge

820165

16

Formed Seat Assembly

603762

Return to 2132 Index Return to Top
