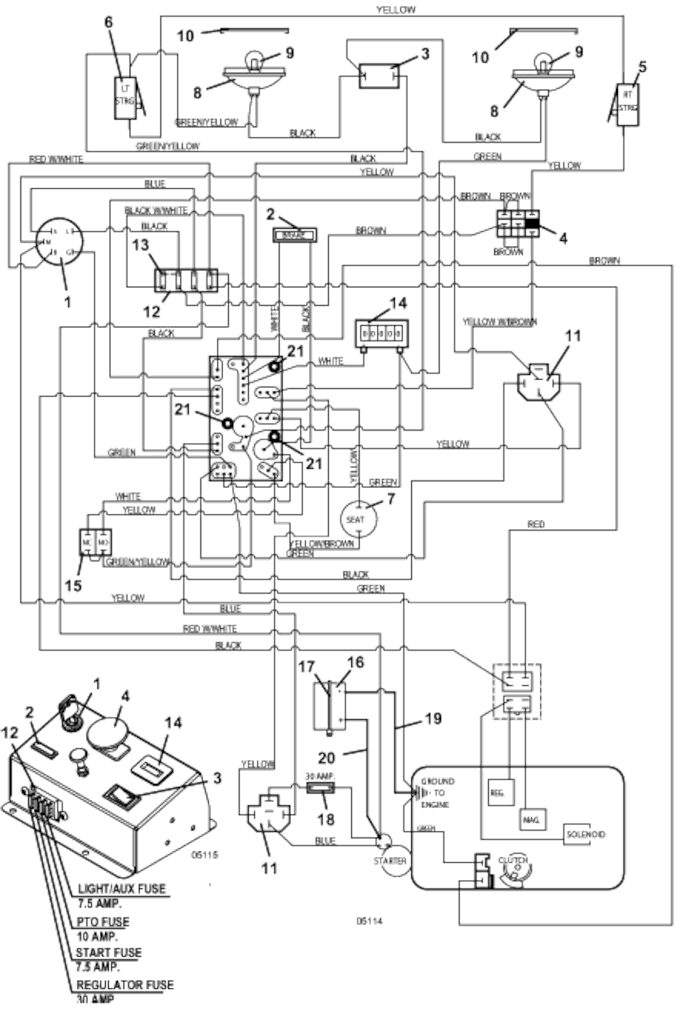

120K • Wiring & Lights Diagram

2006

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Briggs & Stratton / Kohler Ignition Switch with Key

183806

-

Ignition Key with Cover

101101

-

Nut

254498

-

Plastic Panel

422078

2

Brake Light Indicator

182326

3

Rocker Switch

184179

4

Push/Pull Switch

183925

5

Lever Switch

183860

-

Steering Switch Mount - right

720160

6

Lever Switch

183860

-

Steering Switch Mount - left

720161

7

Seat Switch

183870

8

Flood Worklamp

182253

9

Light Bulb for Headlight

182005

10

Snap Mount Worklamp Bezel

182251

11

12V DC Relay with Mount

184271

-

Type 1 6mm Push-On

184570

-

.250 Fast-On Terminal

184581

-

5-Way Female Connector

184926

12

Fuse Block

181720

-

Fuse ID Decal

162320

-

Fuse Block Cover

181721

13

30 amp Auto ATC Fuse

181470

-

7.5 amp Auto ATC Fuse

181460

-

10 amp Auto ATC Fuse

181462

14

Snap In Hour Meter

141551

15

Brake Interlock Switch

183894

16

12 Volt Wet Battery

180125

-

12 Volt Dry Battery

180126

-

M2 Battery Box

723230

17

Battery Hold Down Strap

604785

18

Inline Auto Fuse Holder

181735

-

30 ATC Auto Fuse

181470

19

30" Black Battery Cable

180290

20

35" Red Battery Cable

180335

-

Starter Terminal Boot

425219

21

PC Board Support Spacer

423690

22

Kohler 120 Wiring Assembly

605910

23

120 Console Decal

161129
