Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

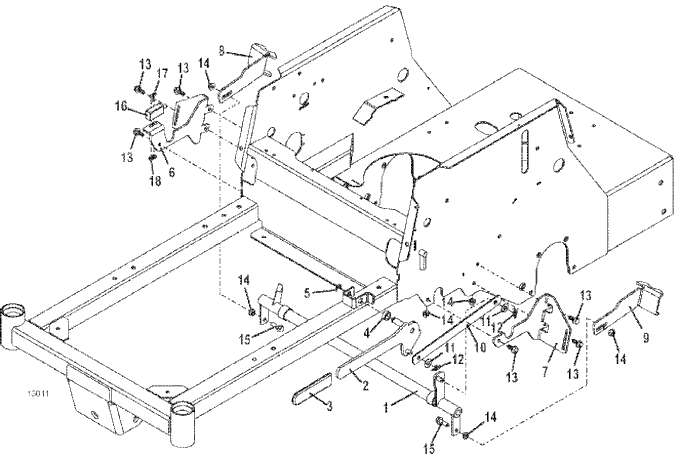

124 • Brake & Linkage Assembly for 41" Decks

2013

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

M2 Brake Tube

644647

2

Brake Lever

645103

3

Handle Grip

422155

4

Spacer

902314

5

External Retainer

263500

6

Bracket

725688

7

Bracket

725689

8

Right Brake Arm

725666

9

Left Brake Arm

725667

10

Brake Linkage Strap

782331

11

Washer

257030

12

Cotter Ring

260608

13

Hex Flange Whiz Bolt

253192

14

Whiz Nut

253035

15

Hex Flange Whiz Bolt

253193

16

Brake Interlock Switch

183894

17

Machine Screw

250258

18

Whiz Nut

253020
