Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

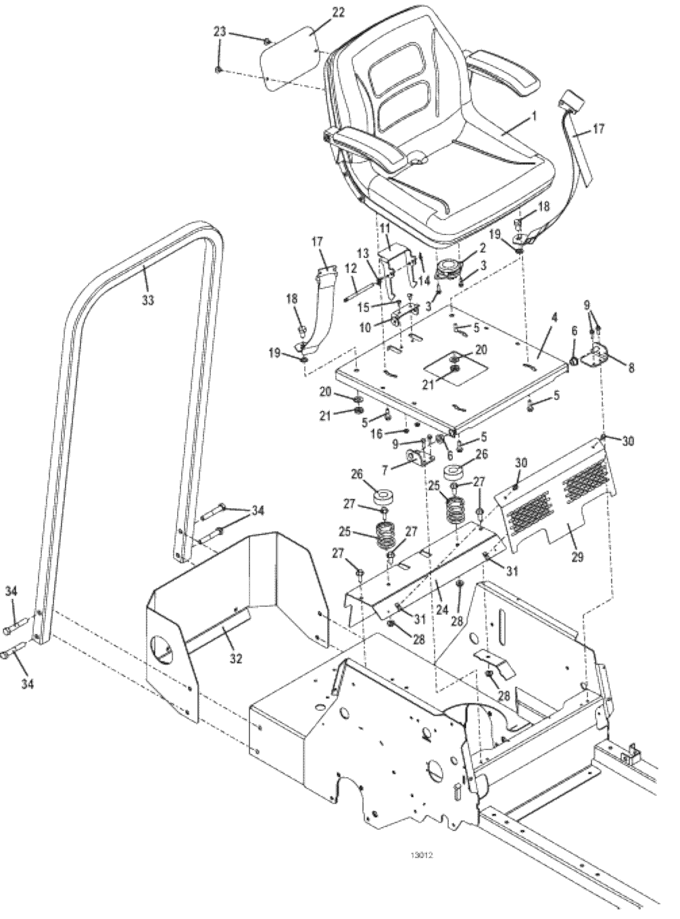

124 • Seat Assembly & Ops Tube for 41" Decks

2013

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Molded Seat Assembly w/Armrests

321570

2

Seat Switch

183870

3

Hex Bolt

243026

4

Seat Pan

643937

5

Flange Whiz Hex Bolt

253193

6

Sleeve Bearing w/Flange

422565

7

Seat Pivot Bracket

644401

8

Seat Pivot Bracket

644402

9

Whiz Hex Bolt

253175

10

200V Seat Latch Mount Bracket

724929

11

200V Seat Latch

724930

12

200V Seat Latch Pivot Pin

730229

13

Torsion Spring

284408

14

Cotter Ring

260606

15

Truss Whiz Bolt

253176

16

Whiz Nut

253025

17

Non-Retractable Seat Belt

324200

18

Hex Bolt

243551

19

Washer

257063

20

Washer

257062

21

Nylon Insert Nut

253470

22

200V Seat Decal Plate

770160

-

Red/White Medium Grasshopper Emblem Decal

163295

23

.250 Plastic Push Stud

246975

24

Seat Crossmember

729729

25

Compression Spring

283516

26

Seat Spring Cap

422127

27

Flange Whiz Bolt

253203

28

Whiz Nut

253043

29

Shield

751041

30

Hex Whiz Bolt

253173

31

Speed Nut

254431

32

Shield

729743

33

M2 Ops Tube

324101

34

Hex Bolt

243600

-

Lock Nut

253930
