Genuine OEM Grasshopper® Mower Parts Diagrams

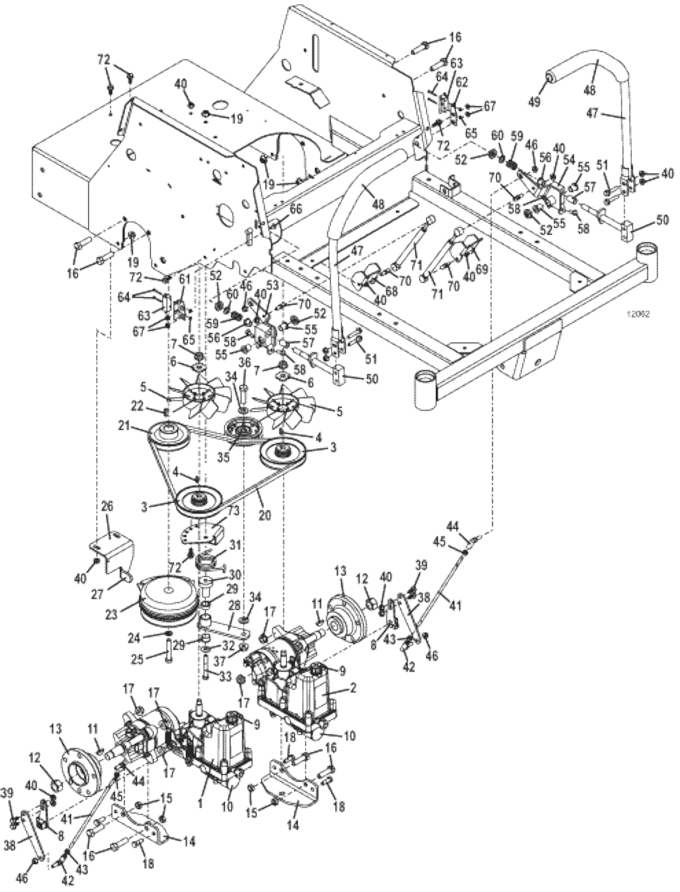

124 • Drive & Steering Assembly for 48" Deep Decks

2013

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Rt Integrated Transmission

391491

2

Lt Integrated Transmission

391490

3

Pulley

130630

4

Square Key

281668

5

H2 & T Hydro Fan

130431

6

Fan Spacer

130632

7

Flanged Nut

253070

8

Control Lever

130618

-

Return Spring

130619

9

Breather/Dipstick

130610

-

Seal Ring

130611

10

Filter

130605

-

O-Ring

126552

-

Filter Plug w/O-Ring

130606

11

Woodruff Key

281845

12

Lock Nut

253992

13

Tapered Hub

824458

14

Tension Strap Bracket

776156

15

Integrated Spacer

902293

16

Hex Bolt

243575

17

Flange Spiral Lock Nut

253067

18

Flange Whiz Bolt

253203

19

Whiz Nut

253043

20

Belt

381942

21

Sheave

415545

22

Square Key

281582

23

Electric Clutch 1" Shaft

388750

24

Lock Washer

257422

25

Hex Bolt

243470

26

100 Anti Rotation Bracket

725123

27

Clutch Bracket Cover

422088

28

Idler Arm Assembly

824478

29

Oilite Bearing

121756

30

Pedestal Bearing

121650

31

Torsion Spring

284428

32

Washer

257040

33

Hex Bolt

243360

34

Washer

257062

35

Idler

393195

36

Hex Bolt

243575

37

Whiz Nut

253066

38

Neutral Return Arm

776158

39

Flange Whiz Hex Bolt

253191

40

Whiz Nut

253035

41

Steering Linkage Rod

780175

42

Righthand TD Ball Joint

265615

43

Nut

254441

44

Lefthand TD Ball Joint

265616

45

Nut

254444

46

Whiz Nut

253038

47

Standard 200V Steering Lever Assembly

605741

48

Handle Grip

422179

49

.75 ID Vinyl Cap

422095

50

Steering Lever Adjustment Mount

643926

51

Flange Whiz Hex Bolt

253195

52

Nylon Insert Nut

253470

53

Rt Steering Pivot Assembly

604856

54

Lt Steering Pivot Assembly

604857

55

Sleeve Bearing w/Flange

422559

56

Sleeve Bearing w/Flange

422556

57

Sleeve Bearing

422557

58

Hex Bolt

243197

59

Compression Spring

283324

60

Washer

257063

61

Rt Steering Switch Mount

720160

62

Lt Steering Switch Mount

720161

63

Lever Switch

183860

64

Machine Screw

250318

65

Nut

254400

66

Truss Whiz Bolt

253176

67

Whiz Nut

253025

68

Rt Damper Mount Bracket

729730

69

Lt Damper Mount Bracket

729731

70

Ball Stud

265680

71

Reverse Damper w/Ball Socket

285032

72

Flange Whiz Hex Bolt

253192

73

Belt Tensioner Bracket

729733
