Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

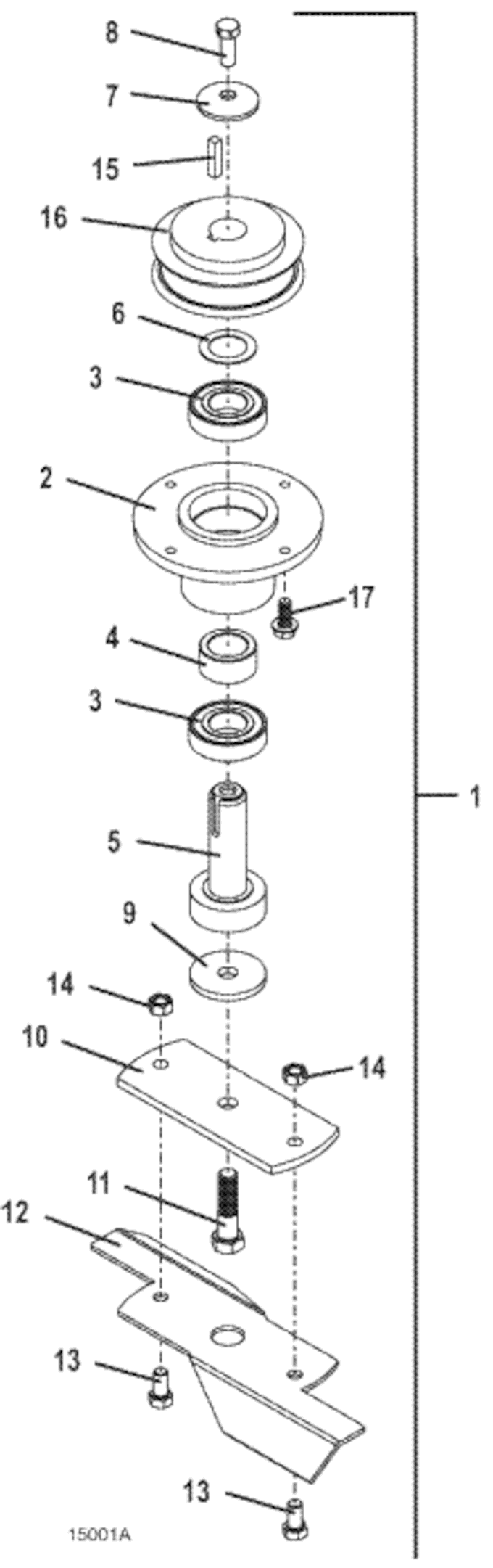

124 • Discharge Spindle Assembly for 48" Deep Decks

2015

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

100/48R Spindle Assembly

623746

2

M1 Rear Decks Spindle Housing

320520

3

25mm 2 Metal Seal Ball Bearing

110080

4

Spacer

282630

5

Spindle Shaft Assembly

605774

6

Washer

257106

7

Cupped Washer

257041

8

Hex Bolt

243331

9

Fiber Washer

421200

10

Counterclockwise Blade Mount

776151

11

Left Hand Hex Bolt

243582

12

Grassthrower

766026

13

Hex Bolt

243320

14

Lock Nut

253890

15

Square Key

281586

16

Flat Sheave

415010

17

Flange Whiz Hex Bolt

253191

Return to 124 48 Deep Deck Index Return to Top
