Genuine OEM Grasshopper® Mower Parts Diagrams

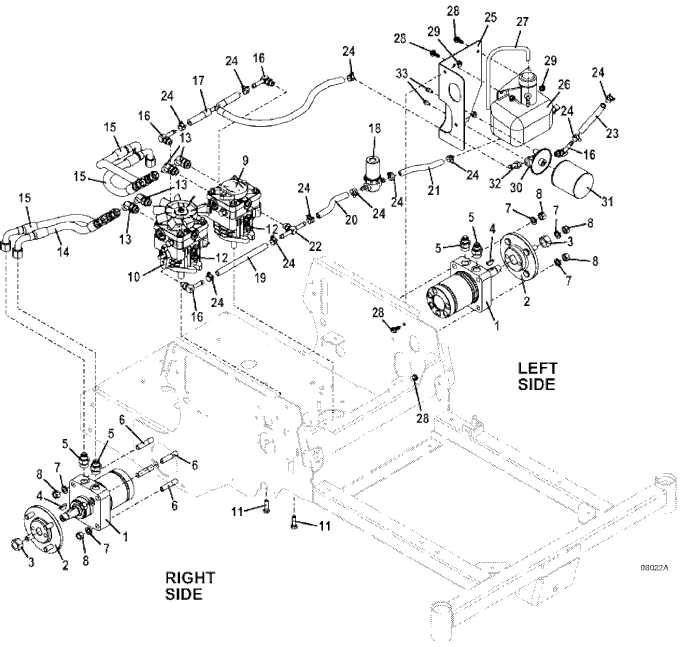

124 • Reservoir & Hose Assembly - M2/52

2010-5

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Wheel Motor with Hub

603612

2

4 Bolt Hub Assembly

603423

3

Lock Nut

253992

4

Woodruff Key

281845

5

O Ring Adapter

360063

6

Hex Bolt

243591

7

Lock Washer

257432

8

Nut

254470

9

H3 Left Hydro Pump

391438

10

H3 Right Hydro Pump w/Thru Shaft

391440

11

Hex Bolt

243335

12

Whiz Nut

253043

13

Adapter Fitting

360046

14

Hose Assembly

424363

15

Hose Assembly

424364

16

Adapter

360056

17

Hose Assembly

424355

18

In-Line Strainer

366554

19

Hydraulic Hose

821786

20

Hydraulic Hose

821774

21

Hydraulic Hose

821775

22

Barbed Tee Adapter

360047

23

Hydraulic Hose

821779

24

Spring Hose Clamp

280264

25

M2 Reservoir Mount Bracket

729409

26

100 Oil Reservoir

822335

-

Reservoir Cap with Gasket

421990

27

Clear Vent Hose

821724

28

Hex Flange Whiz Bolt

253192

29

Whiz Nut

253035

30

M1 Series Filter Base

101024

31

High-Efficiency Transaxle Oil Filter

100855

32

O Ring Boss Fitting

363864

33

Hex Whiz Bolt

253173
