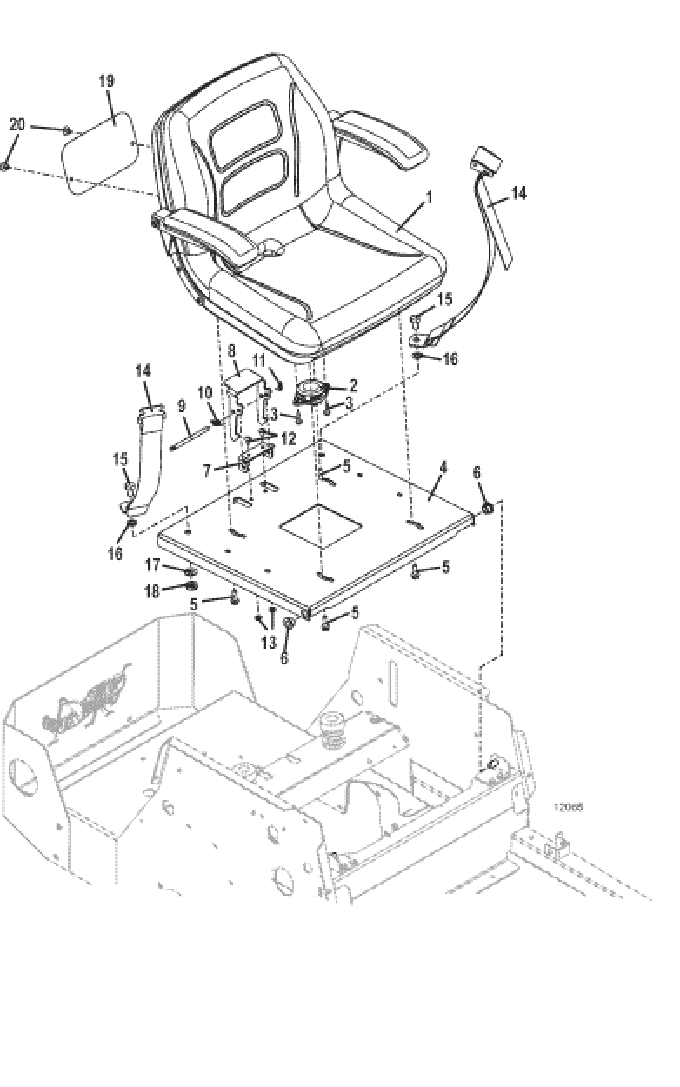

125 Optional Molded Seat Assembly - 2015
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 321570 - Molded Seat Assembly with Armrests | Add To Cart | |
| 2 | 183870 - Seat Switch | Add To Cart | |
| 3 | 243026 - Hex Bolt | Add To Cart | |
| 4 | 643898 - 200V Seat Pan | Add To Cart | |
| 5 | 253192 - Hex Flange Whiz Bolt | Add To Cart | |
| 6 | 422565 - Sleeve Bearing with Flange | Add To Cart | |
| 7 | 724929 - 200V Seat Latch Mount Bracket | Call For Details | |
| 8 | 724930 - 200V Seat Latch | Call For Details | |
| 9 | 730229 - 200V Seat Latch Pivot Pin | Call For Details | |
| 10 | 284408 - Torsion Spring | Add To Cart | |
| 11 | 260606 - Cotter Ring | Add To Cart | |
| 12 | 253176 - Whiz Truss Bolt | Add To Cart | |
| 13 | 253025 - Whiz Nut | Add To Cart | |
| 14 | 324200 - Non-retractable Seat Belt | Add To Cart | |
| 15 | 243551 - Hex Bolt | Add To Cart | |
| 16 | 257063 - Washer | Add To Cart | |
| 17 | 257062 - Washer | Add To Cart | |
| 18 | 253470 - Nylon Insert Nut | Add To Cart | |
| 19 | 770160 - 200V Seat Decal Plate | Call For Details | |
| - | 163295 - Grasshopper Emblem® Med Red/White Decal | Add To Cart | |
| 20 | 246975 - Plastic Push Stud | Add To Cart |
