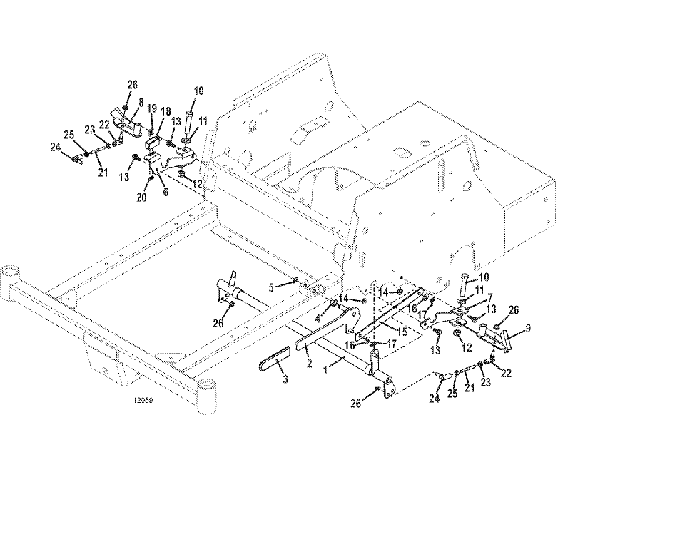

126 Brakes & Linkage Assembly - 2013
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 645104 - M2 Brake Tube | Add To Cart | |
| 2 | 645103 - Brake Lever | Call For Details | |
| 3 | 422155 - Handle Grip | Add To Cart | |
| 4 | 902314 - Spacer | Add To Cart | |
| 5 | 263500 - External Retainer | Add To Cart | |
| 6 | 776212 - Right Brake Support Bracket | Call For Details | |
| 7 | 776213 - Left Brake Support Bracket | Call For Details | |
| 8 | 644398 - Right M2 Brake Arm | Add To Cart | |
| 9 | 644399 - Left M2 Brake Arm | Add To Cart | |
| 10 | 243590 - Hex Bolt | Add To Cart | |
| 11 | 257062 - Washer | Add To Cart | |
| 12 | 253930 - Lock Nut | Add To Cart | |
| 13 | 243192 - Hex Flange Whiz Bolt | Call For Details | |
| 14 | 253035 - Whiz Nut | Add To Cart | |
| 15 | 782331 - Brake Linkage Strap | Call For Details | |
| 16 | 257030 - Washer | Add To Cart | |
| 17 | 260608 - Cotter Ring | Add To Cart | |
| 18 | 183894 - Brake Interlock Switch | Add To Cart | |
| 19 | 250258 - Machine Screw | Add To Cart | |
| 20 | 253020 - Whiz Nut | Add To Cart | |
| 21 | 780179 - Brake Rod | Add To Cart | |
| 22 | 265615 - Righthand Thread Ball Joint | Add To Cart | |
| 23 | 254441 - Nut | Add To Cart | |
| 24 | 265616 - Lefthand Thread Ball Joint | Add To Cart | |
| 25 | 254444 - Nut | Add To Cart | |
| 26 | 253038 - Whiz Nut | Add To Cart |
