Genuine OEM Grasshopper Lawn Mower Parts

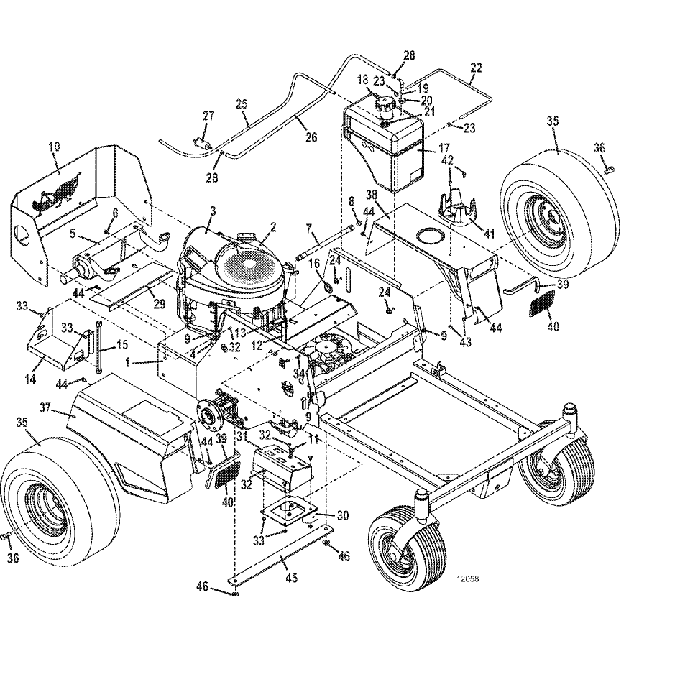

Genuine OEM Grasshopper® Mower Parts Diagrams

126 • Tractor Assembly

2013

tractor assembly M2/52

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

100V/52 Frame

645376

2

26hp Briggs & Stratton Pro Vertical Engine

100153

3

Cyclonic Air Filter

100919

4

Briggs Oil Filter

100803

5

B&S Vertical 20/24/26 HP Vertical Muffler

101197

-

B&S Muffler Exhaust Gasket

101043

6

Hex Bolt

243016

7

Drain Hose Assembly

424319

8

3/8" Metal Pipe Plug

365515

9

Speed Nut

254431

10

Rear Guard Shield

729734

11

Mechanical Choke

142250

12

Throttle Assembly

603854

-

Control Cable Assembly

323643

-

Throttle Lever Stop

722009

-

Heavy Duty - Throttle Lever Stop

722736

13

Handle Grip

422150

14

126 Battery Mount

723062

15

Hold Down Strap

420610

16

Grommet

424250

17

M2 3-Gallon Tank Assembly

605791

18

Sealed Fuel Cap with Tether

100212

19

Fuel Tube

363925

20

Fuel Tube Bushing

101875

21

2011 Fuel Tank Valve

100216

22

Gas Tank Mount Rod

730451

23

Nut

254450

24

Whiz Nut

253043

25

Fuel Vapor Hose

821760

26

Fuel Hose

821768

27

Briggs In-Line Fuel Filter

366560

28

Hose Spring Clamp

280260

29

Heat Shield

751043

30

100 Console Bracket

644410

31

M2/200V Console

645102

32

Truss Whiz Bolt

253176

33

Whiz Nut

253025

34

Truss Whiz Bolt

253177

35

Wheel & Turf Tire 20 x 10 x 10

483924

-

Turf Tire 20 x 10 x 10

482474

-

Wheel 10.00

483420

36

Lug Nut

248565

37

Right 126 Fender

645238

38

Left 126 Fender

645239

39

Seat Edge Trim

822631

40

Work Lamp Hole Plug

422079

41

Cup Holder

150225

42

Cap Screw

259030

43

Nut

254436

44

Hex Whiz Bolt

253173

45

Tension Strap

782898

46

Flanged Spiral Lock Nut

253067

-

Hex Bolt

243565

47

126/52D Decal Set

605331
