Genuine OEM Grasshopper Lawn Mower Parts

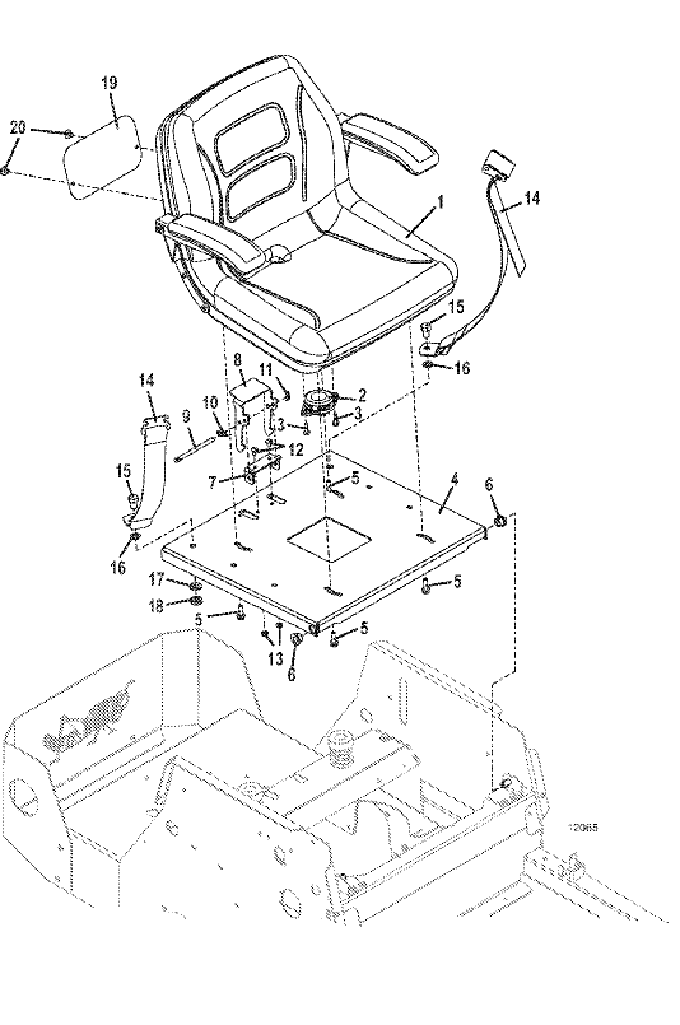

Genuine OEM Grasshopper® Mower Parts Diagrams

126 • Optional Molded Seat Assembly

2014

seat and steering assemblies

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Molded Seat Assembly with Armrests

321570

2

Seat Switch

183870

3

Hex Bolt

243026

4

200V Seat Pan

643898

5

Hex Flange Whiz Bolt

253193

6

Sleeve Bearing with Flange

422565

7

200V Seat Latch Mount Bracket

724929

8

200V Seat Latch

724930

9

200V Seat Latch Pivot Pin

730229

10

Torsion Spring

284408

11

Cotter Ring

260606

12

Whiz Truss Bolt

253176

13

Whiz Nut

253025

14

Non-retractable Seat Belt

324200

15

Hex Bolt

243551

16

Washer

257063

17

Washer

257062

18

Nylon Insert Nut

253470

19

200V Seat Decal Plate

770160

-

Grasshopper Emblem® Med Red/White Decal

163295

20

Plastic Push Stud

246975

Return to 126 Index Return to Top
