Genuine OEM Grasshopper Lawn Mower Parts

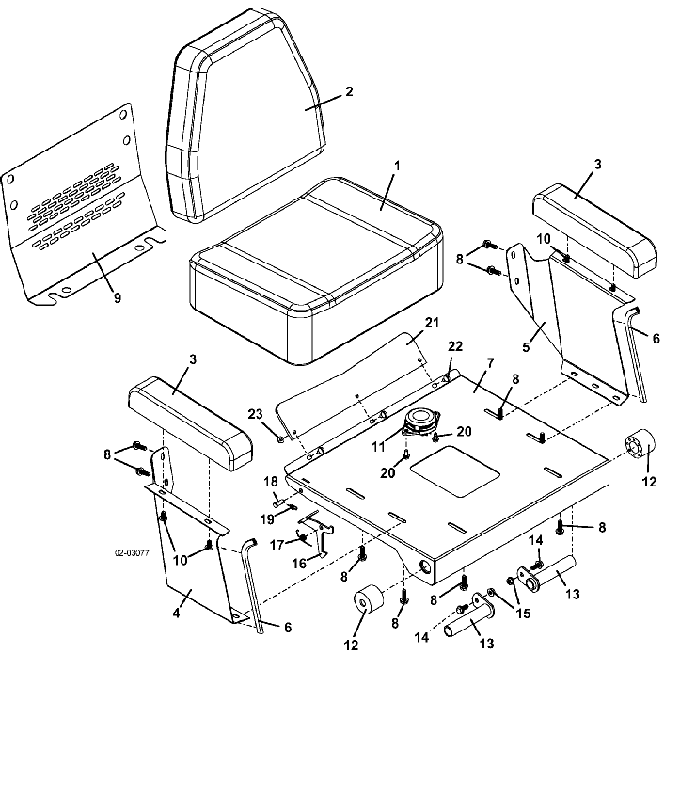

Genuine OEM Grasshopper® Mower Parts Diagrams

218 • Seat Assembly

2004

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Formed Seat Cushion

321515

2

Back Cushion

321511

3

Seat Armrest

321501

4

right Seat Side Member

724310

5

left Seat Side Member

724311

6

Seat Edge Trim

822630

7

M1 Seat Platform / Isolator

643913

8

Hex Flange Whiz Bolt

253193

9

Seat Reinforcement Panel

722388

10

Hex Flange Whiz Bolt

253191

11

Seat Switch

183870

12

Seat Isolator

424095

13

Seat Hinge Pin

644618

14

Hex Flange Whiz Bolt

253192

15

Whiz Nut

253035

16

Seat Latch

724112

17

Torsion Spring

284408

18

Clevis Pin

261280

19

Cotter Ring

260606

20

Hex Whiz Bolt

253175

21

200 Series Seat Flap

424177

22

Truss Whiz Bolt

253176

23

Whiz Nut

253025
