Genuine OEM Grasshopper® Mower Parts Diagrams

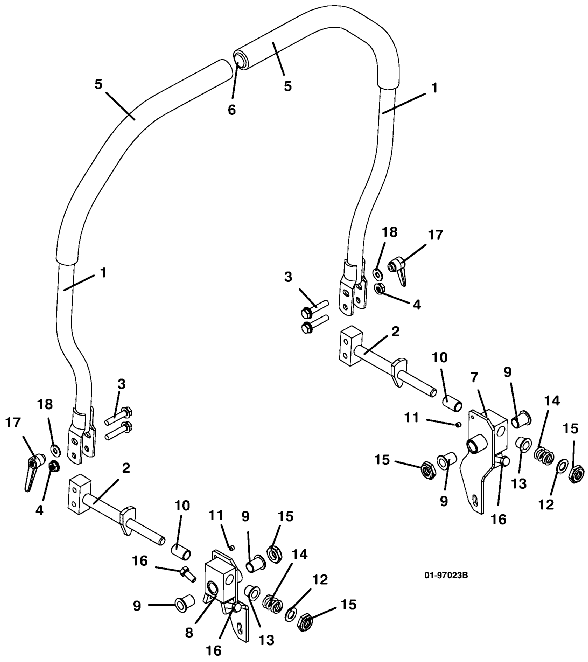

220 / 225 • Steering Assembly

2002

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Steering Lever Assembly - Wide STD

604778

2

Adjustable Steering Lever Mount

643926

3

Hex Flange Whiz Bolt

253195

4

Whiz Nut

253035

5

Handle Grip

422179

6

Vinyl Cap .75 ID

422095

7

right Steering Pivot with Stop & Bearings

604771

8

left Steering Pivot with Stop & Bearings

604772

9

Sleeve Bearing with Flange

422559

10

Sleeve Bearing

422557

11

Set Screw

259305

12

Washer

257063

13

Sleeve Bearing with Flange

422556

14

Compression Spring

283324

15

Nylon Insert Nut

253470

16

Hex Bolt

243197

17

Adjustable Lever Nut

254438

18

Flat Washer

257019

Return to 220/225 Index Return to Top
