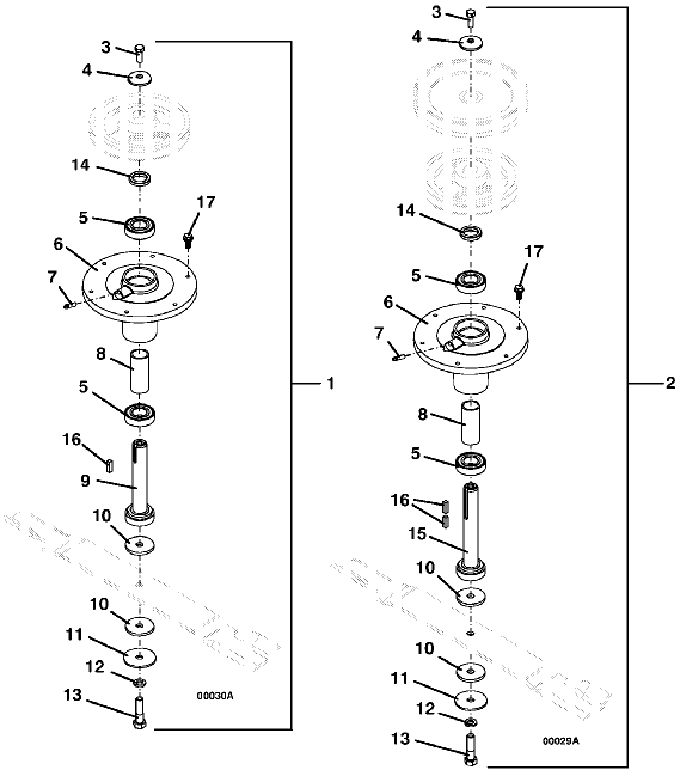

220/225 • Blade Spindle Assembly - M172
2003
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
Left & Right Spindle Assembly (includes items 3-14) |
623786 |
2 |
Center Spindle Assembly (includes items 3-8 & 10-15) |
623787 |
3 |
Hex Bolt .375-24 x 1 |
243331 |
4 |
Cupped Washer |
257041 |
5 |
Ball Bearing 25mm |
110082 |
6 |
Spindle Housing |
824150 |
7 |
Grease Fitting 1/4-28 x 1.125 |
280745 |
8 |
Deep Spindle Bearing Spacer |
903643 |
9 |
Spindle Shaft Assembly |
604774 |
10 |
Fiber Washer |
421200 |
11 |
Washer |
257061 |
12 |
Lock Washer |
257432 |
13 |
Hex Bolt .500-20 x 2 |
243581 |
14 |
Spacer |
282615 |
15 |
Spindle Shaft Assembly |
604773 |
16 |
Square Key .250 x .875 |
281582 |
17 |
Hex Flange Whiz Bolt .312-18 x .75 |
253192 |
