Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

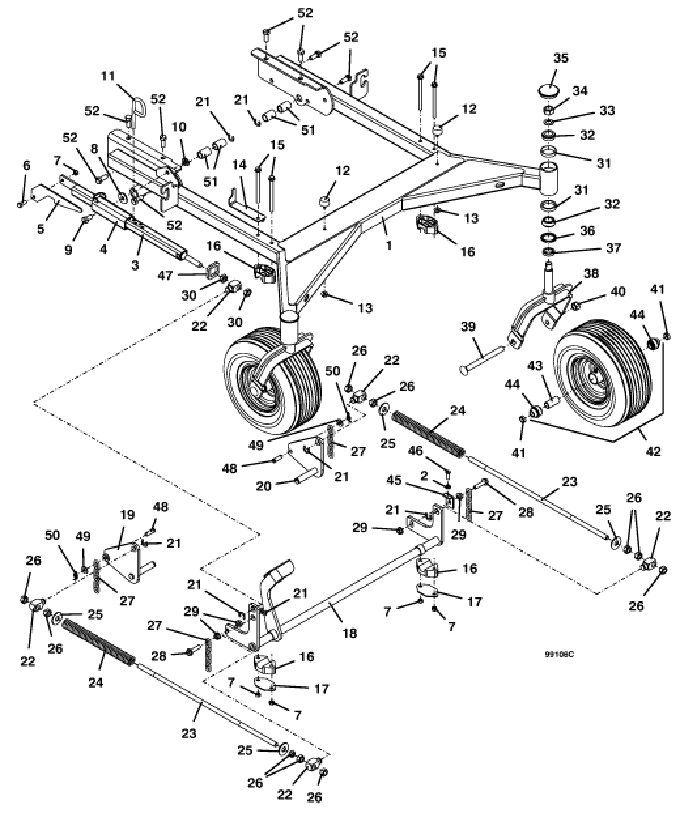

220/225 • Deck Carrier Assembly M172

2003

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Carrier - M1 72

644135

2

Whiz Nut

253035

3

Height Adjustment Tube

644778

4

Latch Tube Guide

644305

5

Deck Latch

775104

6

Hex Bolt .375-16 x 1

243330

7

Lock Nut .375-16

253890

8

Nylon Washer

821516

9

Hex Bolt .500-13 x 1

243560

10

Nylon Nut Insert

253470

11

Height Adjustment Deck Pin

730434

12

Rubber Bumper

424052

13

Whiz Nut .375-16

253043

14

Cutting Height Indicator

754054

15

Flange Bolt .375-16 x 5

253215

16

Bearing Block - M1

423643

17

Lift Bearing Plate

774064

18

Lift Lever - M1 Deck

644524

19

right Rear Deck Rocker - M1

644707

20

left Rear Deck Rocker - M1

644708

21

External Retainer

263529

22

Spring Rod Shaft Mount

882035

23

Spring Shaft - 25"

780663

24

Compression Spring

283395

25

Washer

257080

26

Nut .625-11

254490

27

Chain - 5 Links M1

820331

28

Hex Bolt .437-.14 x 1.75 GR 8

243458

29

Whiz Nut .437-14

253058

30

Nut .625-18

254493

31

Bearing Cup

123522

32

Taper Bearing 1.000 ID

122522

33

Washer

257091

34

Lock Nut .750-16

253992

35

Dust Cap

481434

36

Seal

125855

37

Spacer

282615

38

Fork & Lock Nut Assembly

604365

39

Carriage Bolt

247726

40

Lock Nut .625-11

253970

41

Axle Spacer

902422

42

Wheel Assembly with Bearings

603975

-

Ribbed Tire 13 x 6.50 x 6

482355

-

Wheel without Tire 6 x 4.5

483306

43

Rear Axle Center Spacer

902429

44

Wheel Ball Bearing - .625 DP

120048

45

Adjusting Strap

732586

46

Hex Head Charge Cover Screw

243205

47

Height Adjustment Spacer M1

423696

48

Clevis Pin .437 x 1.25

261405

49

Washer

257051

50

Cotter Ring

260612

51

Oilite Bearing .750 x 1 x 1.5

121766

52

Hex Bolt .5-13 x 1.25

243565

-

Spiral Loc Flange Nut

253067
