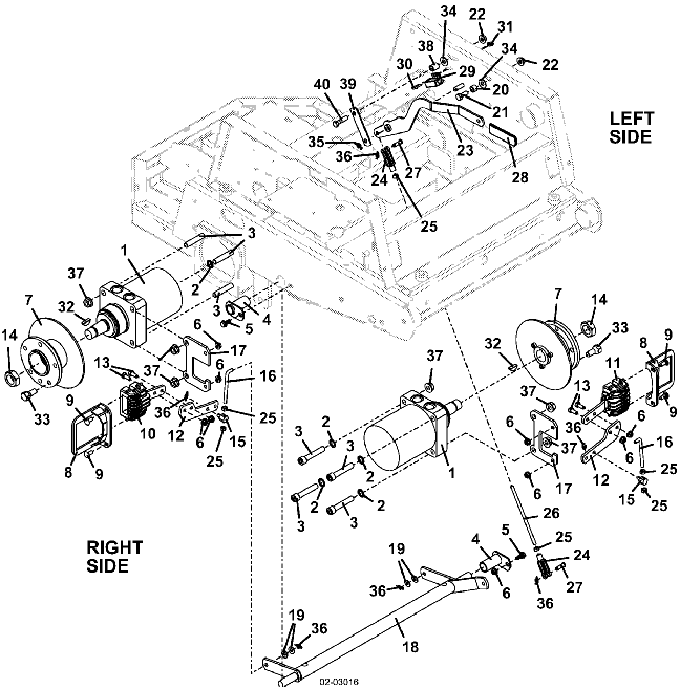

1

Wheel Motor with Hub

603603

2

Internal Star Washer

257430

3

Socket Head Screw

259640

4

Bolt-In Brake Tube

644077

5

Hex Flange Whiz Bolt .312-18 x .75

253192

6

Whiz Nut

253035

7

Bolt-On Rotor Wheel Hub

604440

-

Socket Head Screw

259592

-

8.0 Brake Rotor

775192

8

Caliper Mount

644121

9

Carriage Bolt

247130

10

Counterclockwise Caliper Brake Assembly

481103

-

Brake Pad Kit

603150

11

Clockwise Caliper Brake Assembly

481102

-

Brake Pad Kit

603150

12

M1 Brake Caliper Arm

776056

13

Hex Bolt

243195

14

1-20 Nut

254522

15

Brake Linkage Pin .312

880926

16

M1 Brake Linkage Rod

730158

17

7.75 Rotor Brake Mount

776174

18

Brake Tube

644172

19

Washer

257032

20

Spacer

902280

21

Hex Bolt .375-16 x 1

243330

22

Whiz Nut .375-16

253043

23

W/A Brake Lever

644447

24

Clevis Yoke

265537

25

Nut .312-24

254441

26

Linkage Rod

780157

27

Clevis Pin .312 x 1

261284

28

Handle Grip

422150

29

Brake Interlock Switch

183894

30

Machine Screw

250258

31

Whiz Nut 10-24

253020

32

Woodruff Key .312 x 1

281860

33

Lug Bolt .500 x .875

248565

34

Washer

257040

35

Cotter Ring

260608

36

Cotter Ring

260606

37

Loc Spiral Flange Nut

253067

38

Spacer

902283

39

M1 Pin Reinforcement

774145

40

Hex Bolt

243340
