220 • Reservoir & Hose Assembly

2013

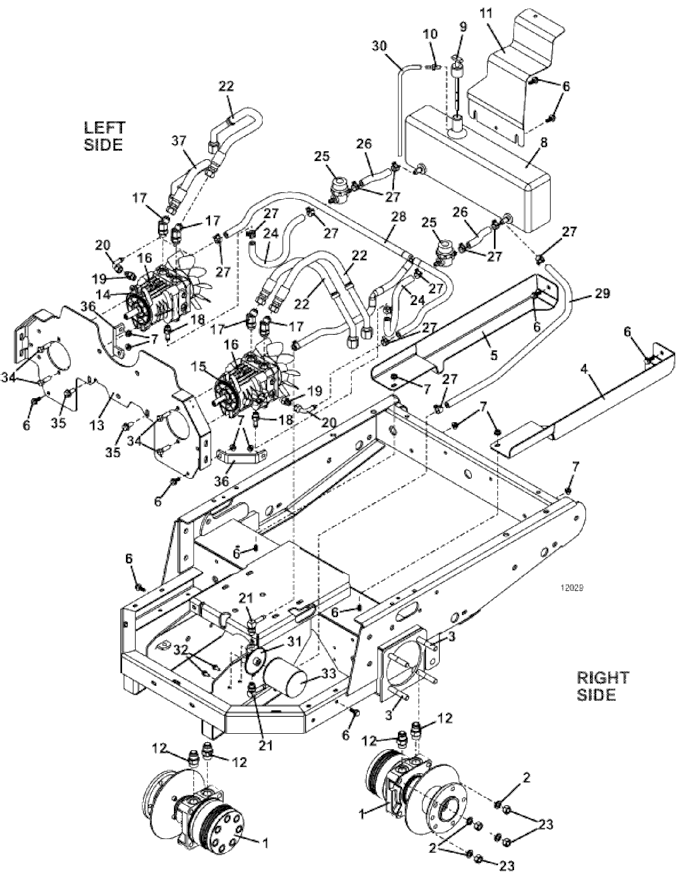

Reservoir and Hose Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Wheel Motor with Hub

603603

2

Lock Washer

257432

3

Diamond Head Bolt

243597

4

Right Tank Rail

645800

5

Left Tank Rail

645801

6

Hex Flange Whiz Bolt

253192

7

Whiz Nut

253035

8

M1 200 Oil Reservoir Assembly

603587

-

Fuel Tube Bushing (Grommet)

101875

-

Straight Fitting

363637

-

90 Degree Fitting

363638

9

M1 Oil Reservoir Dipstick

100728

10

Straight Barbed Fitting

363826

11

Oil/Fuel Tank Anchor

723041

12

Adapter O Ring

360069

13

200 Pump Plate with Fans

644634

14

Left Hydro Pump w/7" Fan

391464

15

Right Hydro Pump w/7" Fan

391465

16

Whiz Nut

253043

17

Adapter Fitting

360046

18

O Ring Boss Fitting

363864

19

Adapter

360057

20

Fitting

363846

21

Adapter

360056

22

Hose Assembly w/Sleeve

424374

23

Nut

254470

24

Hydraulic Hose

821782

25

In-Line Strainer

366551

26

Hydraulic Hose

821778

27

Spring Hose Clamp

280264

28

Hose Assembly

424318

29

Hydraulic Hose

821789

30

Clear Vent Hose

821724

31

M1 Series Filter Base

101024

32

Hex Whiz Bolt

253173

33

High-Efficiency Transaxle Oil Filter

100855

34

Hex Bolt

243335

35

Flange Whiz Bolt

253203

36

Pump Plate Rein Strap

732882

37

Hose Assembly w/Sleeve

424367
