Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

220 • Steering Assembly

2013

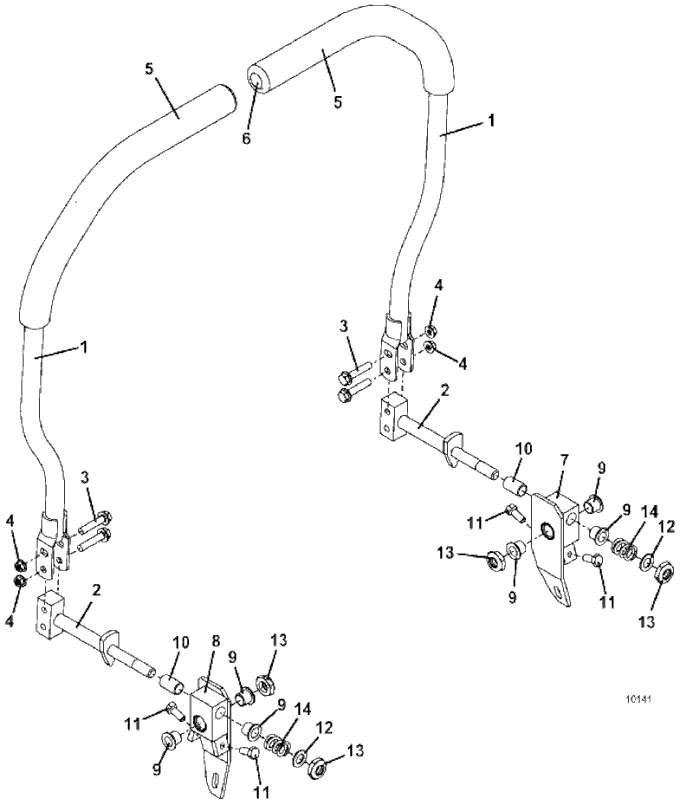

Steering Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Wide STD Steering Lever Assembly

604778

2

Adjustable Steering Lever Mount

643926

3

Hex Flange Whiz Bolt

253195

4

Whiz Nut

253035

5

Handle Grip

422179

6

.75 ID Vinyl Cap

422095

7

200V Right Steering Pivot with Stop & Bearings

604713

8

200V Left Steering Pivot with Stop & Bearings

604714

9

Sleeve Bearing with Flange

422556

10

Sleeve Bearing

422557

11

Hex Bolt

243197

12

Washer

257063

13

Nylon Insert Nut

253470

14

Compression Spring

283324

Return to 220 Index Return to Top
