Genuine OEM Grasshopper® Mower Parts Diagrams

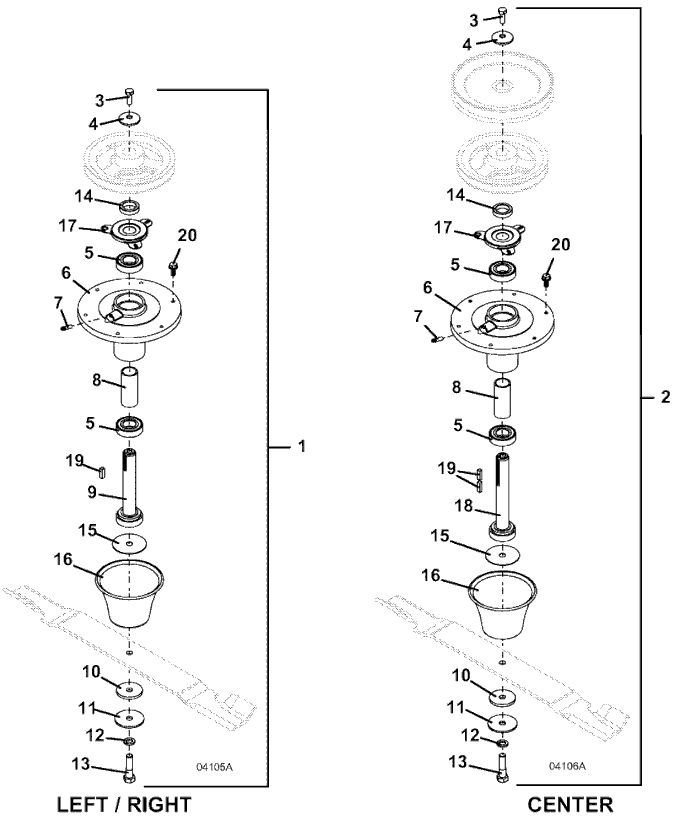

223 / 227 • Blade Spindle Assembly - M172
2006
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
M172 Lt/Rt Blade Spindle Assembly Includes Items 3-17 & 19-20 |
623764 |
2 |
M172 Center Blade Spindle Assembly Includes Items 3-8 & 10-20 |
623765 |
3 |
Hex Bolt .375-24 x 1 |
243331 |
4 |
Cupped Washer |
257041 |
5 |
Single Seal Ball Bearing |
110082 |
6 |
Cast Spindle Housing |
824151 |
7 |
Grease Fitting (Zerk) |
280745 |
8 |
Deep Spindle Bearing Spacer |
903643 |
9 |
Spindle Shaft Assembly |
604774 |
10 |
Fiber Washer |
421200 |
11 |
Washer |
257061 |
12 |
Lock Washer |
257432 |
13 |
Grade 5 Hex Bolt |
243581 |
14 |
Spacer |
282607 |
15 |
Washer |
772061 |
16 |
Deflector Cone |
423680 |
17 |
Shield Bearing |
721167 |
18 |
M1 Spindle Shaft Assembly |
604773 |
19 |
Square Key |
281582 |
20 |
Flange Whiz Hex Bolt |
253192 |
