Genuine OEM Grasshopper® Mower Parts Diagrams

225 • ROPS & Seat Assembly

2021

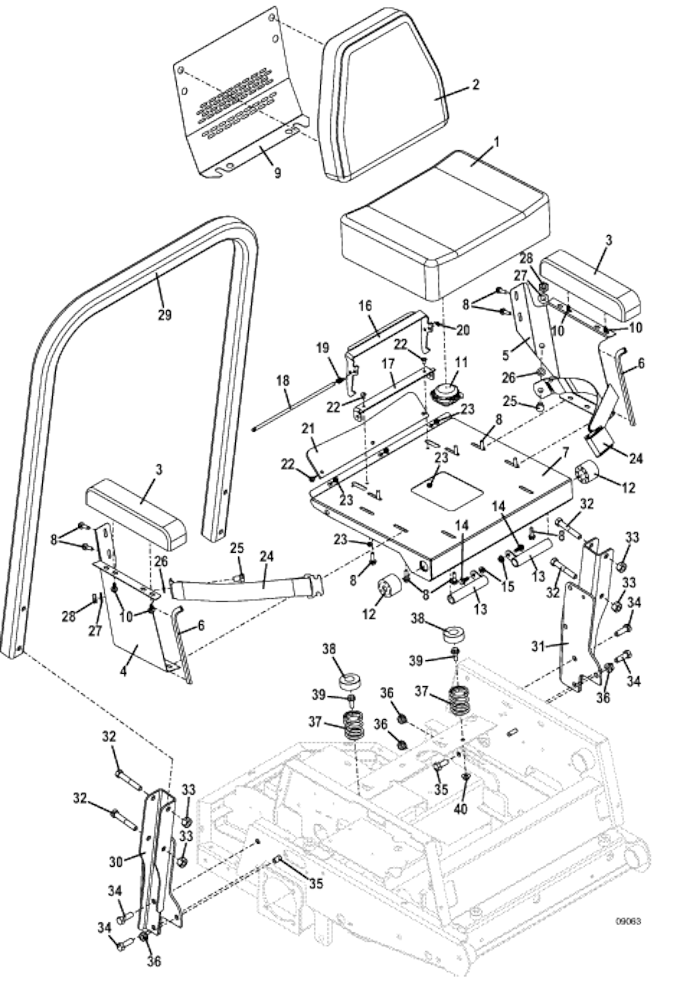

Rops and Seat Assembly Breakdown Diagram

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Combination Seat Cushion
(Includes the seat switch)

321529

1

Cordura Seat Cushion
(Includes the seat switch)

321518

2

Combination Back Cushion with Grasshopper Logo

321530

2

Cordura Back Cushion

321519

3

Cordura Covered Armrest

321523

4

Right Raised Backrest - Seat Side

723433

5

Left Raised Backrest - Seat Side

723434

6

Seat Edge Trim

822630

7

200 Dual Latch Seat Platform

643903

8

Hex Flange Whiz Bolt .312-18 x 1

253193

9

Seat Reinforcement Raised Backrest

722884

10

Flanged Hex Whiz Bolt

253193

11

Twist-in Seat Switch

183871

12

Seat Isolator

424095

13

Seat Hinge Pin

644618

14

Hex Flange Whiz Bolt .312-18 x .75

253192

15

Whiz Nut

253035

16

Seat Latch

754240

17

Dual Latch Mount Bracket

754226

18

Seat Latch Pivot Pin

730230

19

Torsion Spring

284408

20

Cotter Ring

260606

21

Seat Flap - 200 Series

424177

22

Truss Hex Whiz Bolt

253176

23

Whiz Nut .250-20

253025

24

Non-retractable Seat Belt

324200

25

Hex Bolt

243551

26

Washer

257063

27

Washer

257062

28

Nylon Insert Nut

253470

29

ROPS (Roll-Over Protection Structure) - M1

324104

30

ROPS Mount - right

643862

31

ROPS Mount - left

643863

32

Hex Bolt

243600

33

Lock Nut

253930

34

Hex Bolt

243570

35

Hex Bolt

243565

36

Flange Spiral Lock Nut

253067

37

Compression Spring

283516

38

Seat Spring Cap

422127

39

Flange Whiz Bolt

253203

40

Whiz Nut

253043
