Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

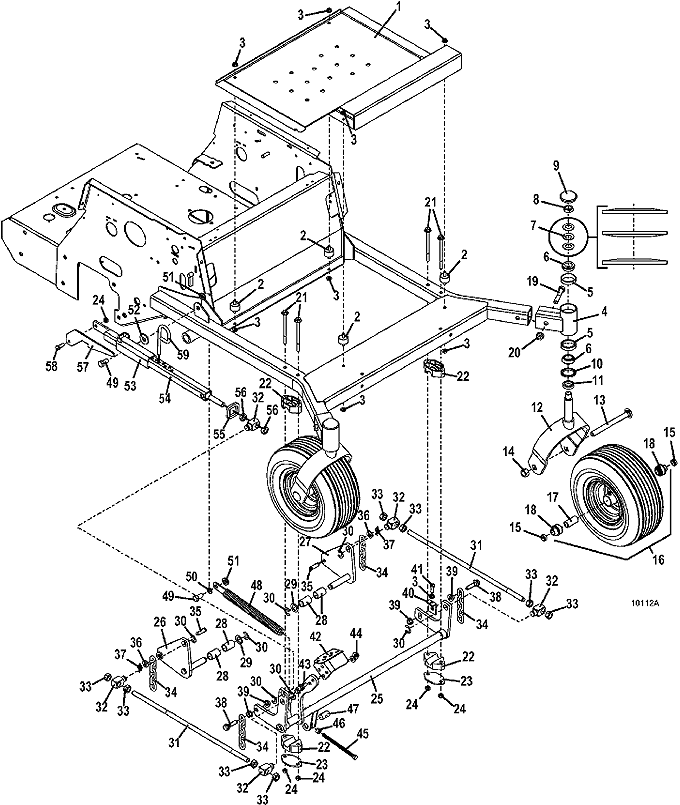

226V • Deck Carrier Linkage Assembly

2010½

deck carrier linkage assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

200V Footrest

643893

2

Vibration Isolator

424074

3

Whiz Nut

253035

4

200V Fork Housing

824978

5

Bearing Cup

123522

6

Tapered Bearing

122522

7

Spring Washer

257320

8

Nylon-Top Jam Lock Nut

254505

9

Domed Dust Cap

481434

10

Seal

125855

11

Spacer

282615

12

Tail Wheel Fork Tapered Bearing

645221

13

Carriage Bolt

247725

14

Lock Nut

253970

15

Axle Spacer

902422

16

13 x 6.5 x 6 Rear Wheel Assembly with Bearings

603975

17

Center Rear Axle Spacer

902429

18

DP Wheel Ball Bearing

120048

19

Hex Bolt

243600

20

Spiral Flange Lock Nut

253067

21

Flange Bolt

253215

22

M1 Bearing Block

423643

23

Lift Bearing Plate

774064

24

Lock Nut

253890

25

200V Adjustable Lift Lever

644871

26

M1 right Rear Deck Rocker

644707

27

M1 left Rear Deck Rocker

644708

28

Oilite Bearing

121766

29

18 Ga Bushing Washer

257092

30

External Retainer

263529

31

Spring Shaft

780661

-

Deck Carrier Rod

321100

32

Spring Rod Shaft Mount

882035

33

Nut

254490

34

Lift Chain

820320

35

Clevis Pin

261405

36

Washer

257051

37

Cotter Ring

260612

38

GR 8 Hex Bolt

243458

39

Whiz Nut

253058

40

M1 Deck Adjustment Strap

732586

41

Hex Bolt

243205

42

M1 Carrier Adjustment Foot Pedal

644467

43

Flange Whiz Bolt

253203

44

Whiz Nut

253043

45

Hex Bolt

243399

46

Spacer

902280

47

Spring Shaft Mount

881154

48

Spring & Plug Nut Assembly

604839

49

Hex Bolt

243560

50

Washer

257063

51

Nylon Nut Insert

253470

52

Nylon Washer

821516

53

Latch Tube Guide

644305

54

M1 Height Adjustment Tube

644778

55

M1 Height Adjustment Spacer

423696

56

Nut

254493

57

Deck Latch

775104

58

Hex Bolt

243330

59

Deck Height Adjustment Pin

730434
