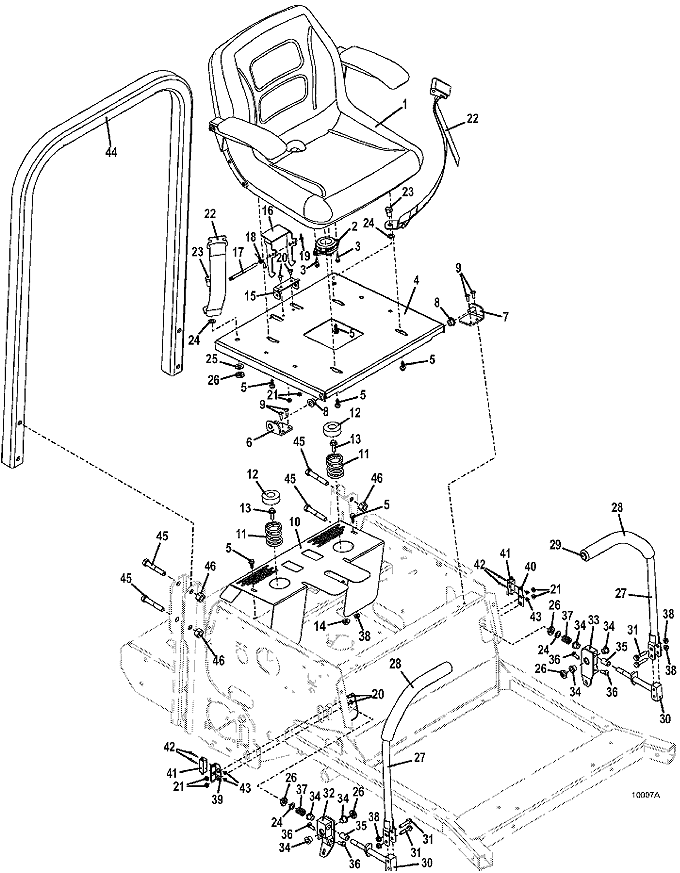

1

Molded Seat Assembly with Armrests

321570

2

Seat Switch

183870

3

Hex Bolt

243026

4

200V Seat Pan

643898

5

Hex Flange Whiz Bolt

253192

6

Seat Pivot Bracket

644402

7

Seat Pivot Bracket

644401

8

Sleeve Bearing with Flange

422565

9

Hex Whiz Bolt

253175

10

200V Fan Shield

722924

11

Compression Spring

283516

12

Seat Spring Cap

422127

13

Flange Whiz Bolt

253203

14

Whiz Nut

253043

15

200V Seat Latch Mount Bracket

724929

16

200V Seat Latch

724930

17

200V Seat Latch Pivot Pin

730229

18

Torsion Spring

284408

19

Cotter Ring

260606

20

Truss Whiz Bolt

253176

21

Whiz Nut

253025

22

Non-retractable Seat Belt

324200

23

Hex Bolt

243551

24

Washer

257063

25

Washer

257062

26

Nylon Insert Nut

253470

27

200V Steering Lever

644870

28

Handle Grip

422179

29

.75 ID Vinyl Cap

422095

30

Adjustable Steering Lever Mount

643926

31

Hex Flange Whiz Bolt

253195

32

200V right Steering Pivot with Stop & Bearings

604713

33

200V left Steering Pivot with Stop & Bearings

604714

34

Sleeve Bearing with Flange

422556

35

Sleeve Bearing

422557

36

Hex Bolt

243197

37

Compression Spring

283324

38

Whiz Nut

253035

39

right Steering Switch Mount

720160

40

left Steering Switch Mount

720161

41

Lever Switch

183860

42

Machine Screw

250318

43

Nut

254400

44

200V ROPS Tube

324108

45

Hex Bolt

243591

46

Lock Nut

243600
