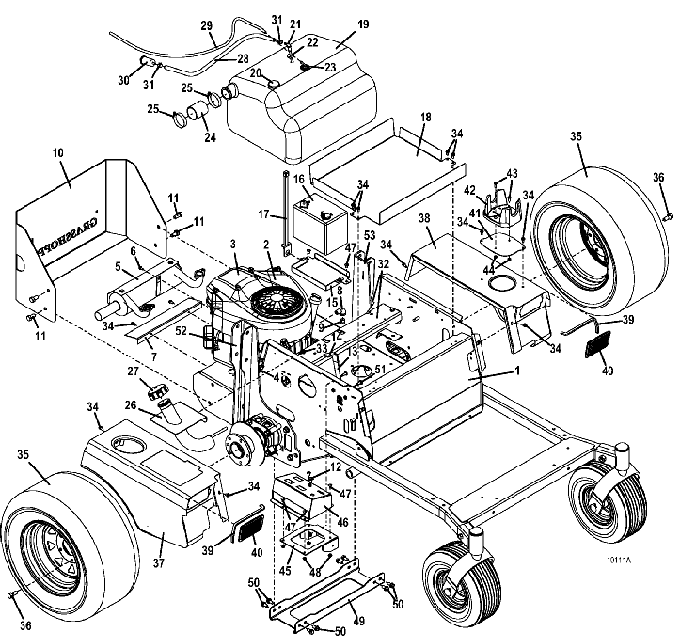

226V Tractor Assembly - 2011
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 645201 - 200V 48/52 Frame | Call For Details | |
| - | 645202 - 200V 61 Frame | Call For Details | |
| 2 | 100153 - 26hp Briggs & Stratton Pro Vertical Engine | Call For Details | |
| 3 | 100918 - Air Filter with Pre-Cleaner | Add To Cart | |
| 4 | 100803 - Briggs Oil Filter | Add To Cart | |
| 5 | 101197 - Muffler for 20/24 hp Briggs & Stratton Vertical Engine | Add To Cart | |
| - | 101043 - Muffler Exhaust Gasket for Briggs & Stratton Vertical Engine | Call For Details | |
| 6 | 243016 - Hex Bolt | Add To Cart | |
| 7 | 722974 - 120 Heat Shield | Call For Details | |
| 8 | 363515 - Street Ell | Call For Details | |
| 9 | 365515 - Metal Pipe Plug | Add To Cart | |
| 10 | 725900 - 200V Rear Shield | Call For Details | |
| 11 | 243560 - Hex Bolt | Add To Cart | |
| 12 | 142250 - Mechanical Choke | Add To Cart | |
| 13 | 603821 - Throttle Assembly | Add To Cart | |
| - | 323655 - Control Cable Assembly | Add To Cart | |
| - | 722009 - Throttle Lever Stop | Add To Cart | |
| 14 | 422150 - Handle Grip | Add To Cart | |
| 15 | 723038 - 200V Battery Tray | Call For Details | |
| 16 | 180125 - 12 Volt Wet Battery | Add To Cart | |
| - | 180126 - 12 Volt Dry Battery | Add To Cart | |
| 17 | 604785 - Battery Hold Down Strap | Add To Cart | |
| 18 | 722926 - 200V Tank Shield | Call For Details | |
| 19 | 605798 - 200V Tank Assembly | Call For Details | |
| 20 | 141142 - Fuel Intake Gauge | Add To Cart | |
| - | 424275 - Grommet | Add To Cart | |
| 21 | 363925 - Fuel Tube | Add To Cart | |
| 22 | 101875 - Grommet | Add To Cart | |
| 23 | 100216 - 2011 Fuel Tank Valve | Add To Cart | |
| 24 | 422027 - Fuel Tank Filler Hose | Add To Cart | |
| 25 | 280305 - Screw Type Hose Clamp | Add To Cart | |
| 26 | 644886 - 200 Fuel Filler | Add To Cart | |
| 27 | 100213 - Sealed Tether External Fuel Cap | Add To Cart | |
| 28 | 821769 - Fuel Hose | Add To Cart | |
| 29 | 821746 - Fuel Vapor Hose | Call For Details | |
| 30 | 366560 - Briggs In-Line Fuel Filter | Add To Cart | |
| 31 | 280260 - Spring Hose Clamp | Add To Cart | |
| 32 | 729577 - 200V Crossmember Seat | Call For Details | |
| 33 | 253175 - Hex Whiz Bolt | Add To Cart | |
| 34 | 253173 - Hex Whiz Bolt | Add To Cart | |
| 35 | 483960 - Wheel & Turf Tire 23 x 10.5 x 12 | Add To Cart | |
| - | 482485 - Turf Tire 23 x 10.5 x 12 | Add To Cart | |
| - | 483445 - Wheel 12 x 8.5 x 5.75 (w/ 52 deck) | Add To Cart | |
| 36 | 248565 - Lug Nut | Add To Cart | |
| 37 | 644884 - right 200V Fender | Call For Details | |
| - | 163718 - right 226V Trim Decal | Add To Cart | |
| 38 | 644885 - left 200V Fender | Call For Details | |
| - | 163719 - left 226V Trim Decal | Add To Cart | |
| 39 | 822632 - Trim | Add To Cart | |
| 40 | 422079 - Work Lamp Hole Plug | Add To Cart | |
| 41 | 722804 - M2 Reservoir Access Panel | Add To Cart | |
| 42 | 150225 - Cup Holder | Add To Cart | |
| 43 | 259030 - Cap Screw | Add To Cart | |
| 44 | 254436 - Nut | Add To Cart | |
| 45 | 644410 - 100 Console Bracket | Call For Details | |
| 46 | 645102 - M2/200v Console | Call For Details | |
| 47 | 253176 - Truss Whiz Bolt | Add To Cart | |
| 48 | 253025 - Whiz Nut | Add To Cart | |
| 49 | 724924 - 200V Wheel Motor Mount/Crossmember | Call For Details | |
| 50 | 253203 - Flange Whiz Bolt | Add To Cart | |
| - | 253043 - Whiz Nut | Add To Cart | |
| 51 | 253177 - Truss Whiz Bolt | Add To Cart | |
| 52 | 645206 - right 200V Wheel Motor & ROPS Mount | Call For Details | |
| 53 | 645207 - left 200V Wheel Motor & ROPS Mount | Call For Details | |
| 54 | 605349 - 200V Decal Set | Add To Cart |
