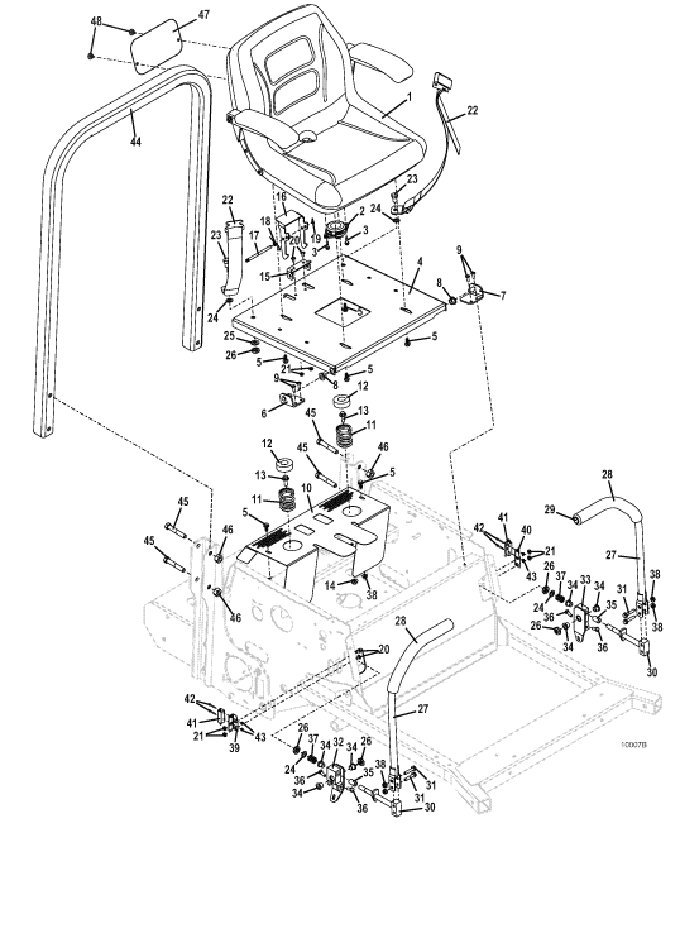

226V Seat & Steering Assembly - 2012
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 321570 - Molded Seat Assembly with Armrests | Add To Cart | |
| 2 | 183870 - Seat Switch | Add To Cart | |
| 3 | 243026 - Hex Bolt | Add To Cart | |
| 4 | 643898 - 200V Seat Pan | Add To Cart | |
| 5 | 253192 - Hex Flange Whiz Bolt | Add To Cart | |
| 6 | 644402 - Seat Pivot Bracket | Add To Cart | |
| 7 | 644401 - Seat Pivot Bracket | Add To Cart | |
| 8 | 422565 - Sleeve Bearing with Flange | Add To Cart | |
| 9 | 253175 - Hex Whiz Bolt | Add To Cart | |
| 10 | 722924 - 200V Fan Shield | Add To Cart | |
| 11 | 283516 - Compression Spring | Add To Cart | |
| 12 | 422127 - Seat Spring Cap | Add To Cart | |
| 13 | 253203 - Flange Whiz Bolt | Add To Cart | |
| 14 | 253043 - Whiz Nut | Add To Cart | |
| 15 | 724929 - 200V Seat Latch Mount Bracket | Call For Details | |
| 16 | 724930 - 200V Seat Latch | Call For Details | |
| 17 | 730229 - 200V Seat Latch Pivot Pin | Call For Details | |
| 18 | 284408 - Torsion Spring | Add To Cart | |
| 19 | 260606 - Cotter Ring | Add To Cart | |
| 20 | 253176 - Truss Whiz Bolt | Add To Cart | |
| 21 | 253025 - Whiz Nut | Add To Cart | |
| 22 | 324200 - Non-retractable Seat Belt | Add To Cart | |
| 23 | 243551 - Hex Bolt | Add To Cart | |
| 24 | 257063 - Washer | Add To Cart | |
| 25 | 257062 - Washer | Add To Cart | |
| 26 | 253470 - Nylon Insert Nut | Add To Cart | |
| 27 | 605741 - 200V Standard Steering Lever | Add To Cart | |
| 28 | 422179 - Handle Grip | Call For Details | |
| 29 | 422095 - .75 ID Vinyl Cap | Call For Details | |
| 30 | 643926 - Adjustable Steering Lever Mount | Add To Cart | |
| 31 | 253195 - Hex Flange Whiz Bolt | Add To Cart | |
| 32 | 604713 - 200V right Steering Pivot with Stop & Bearings | Add To Cart | |
| 33 | 604714 - 200V left Steering Pivot with Stop & Bearings | Add To Cart | |
| 34 | 422556 - Sleeve Bearing with Flange | Add To Cart | |
| 35 | 422557 - Sleeve Bearing | Add To Cart | |
| 36 | 243197 - Hex Bolt | Add To Cart | |
| 37 | 283324 - Compression Spring | Add To Cart | |
| 38 | 253035 - Whiz Nut | Add To Cart | |
| 39 | 720160 - right Steering Switch Mount | Add To Cart | |
| 40 | 720161 - left Steering Switch Mount | Add To Cart | |
| 41 | 183860 - Lever Switch | Add To Cart | |
| 42 | 250318 - Machine Screw | Call For Details | |
| 43 | 254400 - Nut | Call For Details | |
| 44 | 324108 - 200V ROPS Tube | Call For Details | |
| 45 | 243600 - Hex Bolt | Add To Cart | |
| 46 | 253930 - Lock Nut | Add To Cart | |
| 47 | 770160 - 200v Seat Decal Plate | Call For Details | |
| - | 163295 - Med Red/White GH Emblem Decal | Add To Cart | |
| 48 | 246975 - .250 Plastic Push Stud | Add To Cart |
