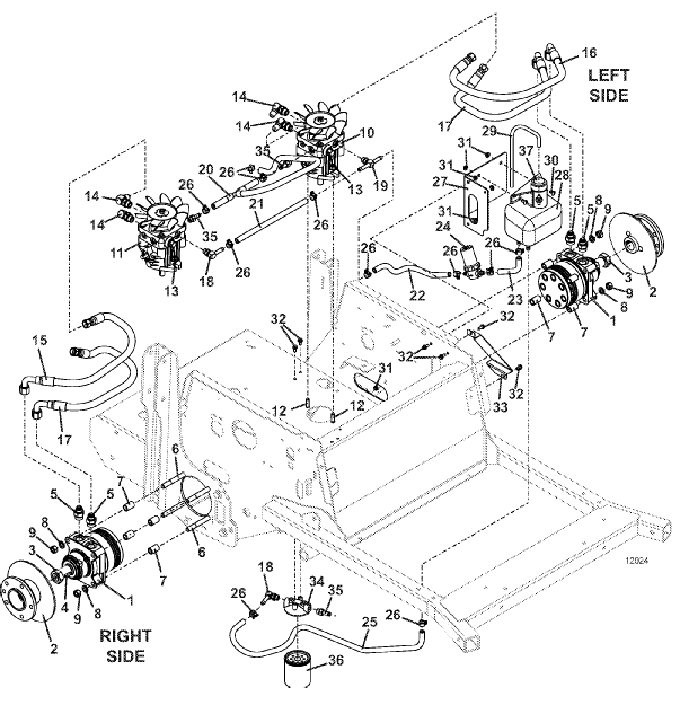

226V Reservoir & Hose Assembly - 2017
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 603603 - Wheel Motor w/Hub(includes items 2 - 4) | Add To Cart | |
| 2 | 604436 - Hub & Rotor Assembly | Add To Cart | |
| 3 | 253992 - Lock Nut | Add To Cart | |
| 4 | 281845 - Woodruff Key | Add To Cart | |
| 5 | 360063 - O Ring Adapter | Add To Cart | |
| 6 | 243622 - Square Head Bolt | Add To Cart | |
| 7 | 942184 - Wheel Motor Spacer for 61 Inch Model | Call For Details | |
| 8 | 257432 - Lock Washer | Add To Cart | |
| 9 | 254470 - Nut | Add To Cart | |
| 10 | 391464 - Lt Hydro Pump w/7' Fan | Add To Cart | |
| 11 | 391465 - Rt Hydro Pump w/7' Fan | Add To Cart | |
| 12 | 243335 - Hex Bolt | Add To Cart | |
| 13 | 253043 - Whiz Nut | Add To Cart | |
| 14 | 360061 - O-Ring Adapter | Add To Cart | |
| 15 | 424387 - Hose Assembly | Add To Cart | |
| 16 | 424388 - Hose Assembly | Add To Cart | |
| 17 | 424389 - Hose Assembly | Add To Cart | |
| 18 | 360056 - Adapter | Add To Cart | |
| 19 | 360047 - Adjustable -6 MB -6 BD Stem Tee Adapter | Call For Details | |
| 20 | 424358 - Hose Assembly | Add To Cart | |
| 21 | 821782 - Hydraulic Hose | Add To Cart | |
| 22 | 821783 - Hydraulic Hose | Add To Cart | |
| 23 | 821774 - Hydraulic Hose | Add To Cart | |
| 24 | 366554 - In-Line Strainer | Add To Cart | |
| 25 | 821809 - Hydraulic Hose | Call For Details | |
| 26 | 280264 - Spring Hose Clamp | Add To Cart | |
| 27 | 724949 - 200V Oil Reservoir Mount | Call For Details | |
| 28 | 822334 - 200V Oil Reservoir | Add To Cart | |
| 29 | 821724 - Clear Vent Hose | Add To Cart | |
| 30 | 253176 - Truss Whiz Bolt | Add To Cart | |
| 31 | 253025 - Whiz Nut | Add To Cart | |
| 32 | 253173 - Hex Whiz Bolt | Add To Cart | |
| 33 | 722925 - 200V Oil Hoses Cover | Call For Details | |
| 34 | 101024 - M1 Series Filter Base | Add To Cart | |
| 35 | 363864 - O Ring Boss Fitting | Add To Cart | |
| 36 | 100855 - High-Efficiency Transaxle Oil Filter | Add To Cart | |
| 37 | 421990 - Reservoir Cap with Gasket | Add To Cart |
