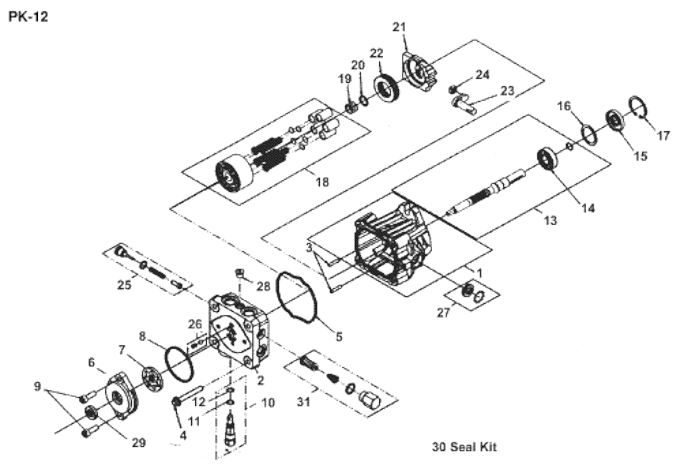

226V Pump Assembly - 2018
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 130052 - Housing Kit | Add To Cart | |
| 2 | 130037 - End Cap Kit | Call For Details | |
| 3 | 130046 - Dowel Pin | Add To Cart | |
| 4 | 271075 - Housing Bolt | Add To Cart | |
| 5 | 130181 - Molded Seal Ring | Add To Cart | |
| 6 | 130022 - Charge Pump Cover | Add To Cart | |
| 7 | 130062 - Gerotor Set | Call For Details | |
| 8 | 130020 - Charge Cover Square Seal Ring | Add To Cart | |
| 9 | 243205 - Hex Bolt | Add To Cart | |
| 10 | Bypass Valve (NOT AVAILABLE) | Unavailable | |
| 11 | 130017 - Backup Ring | Add To Cart | |
| 12 | 130018 - Bypass Valve O-Ring | Add To Cart | |
| 13 | 130174 - Shaft and Bearing Kit W/ Thru Shaft | Add To Cart | |
| 14 | 130078 - Input Bearing | Add To Cart | |
| 15 | 125365 - Input Seal | Add To Cart | |
| 16 | 130087 - Spacer | Add To Cart | |
| 17 | 130090 - Retaining Ring | Add To Cart | |
| 18 | 130153 - Block Kit | Call For Details | |
| 19 | 130014 - Block Spring | Call For Details | |
| 20 | 130218 - Block Thrust Washer | Add To Cart | |
| 21 | 130182 - Swashplate | Call For Details | |
| 22 | 130013 - Thrust Bearing | Add To Cart | |
| 23 | 130036 - Trunnion Arm | Add To Cart | |
| 24 | 130065 - Guide Block | Add To Cart | |
| 25 | 130156 - Check Valve Kit | Add To Cart | |
| - | 130031 - Check Plug O-Ring | Add To Cart | |
| 26 | 130019 - Charge Relief Kit | Add To Cart | |
| 27 | 125355 - Trunnion Seal Kit | Add To Cart | |
| 28 | 103739 - Straight Thread Plug | Add To Cart | |
| 29 | 125164 - Block Kit | Add To Cart | |
| 30 | 130175 - Thrust Bearing | Add To Cart | |
| 31 | 130160 - Shock Valve Kit | Add To Cart |
