226V-G4 • Drive & Steering Assembly

2018

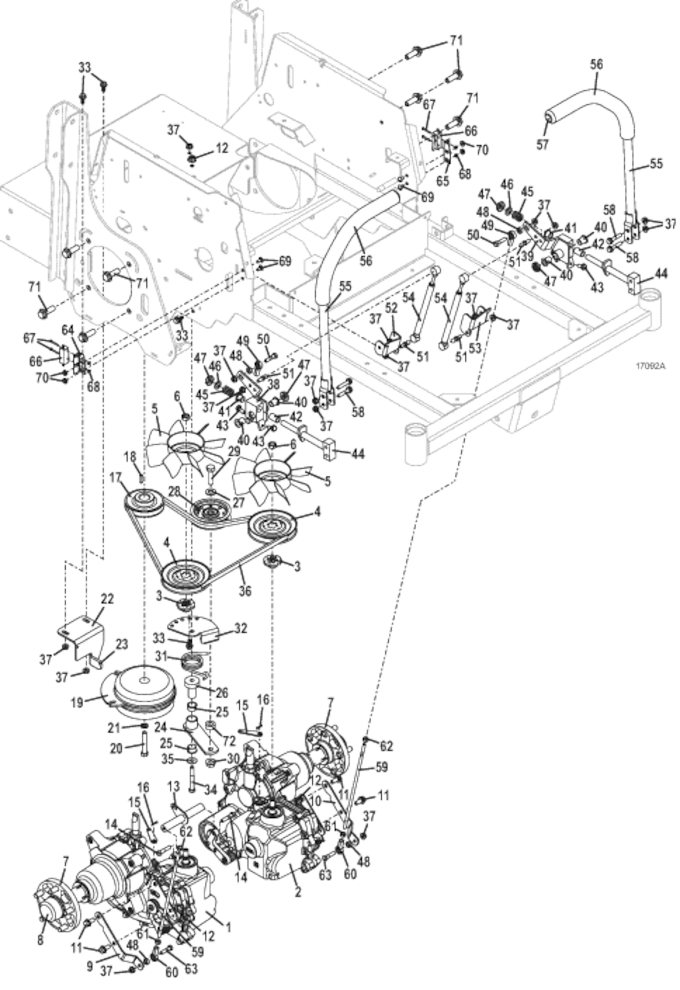

226V-G4 Drive and Steering Assembly Diagram

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Right Integrated Transmission

391503

-

Filter Kit

130205

2

Left Integrated Transmission

391502

-

Filter Kit

130205

3

Fan Hub

130232

4

Pulley/Fan Kit

130230

5

Fan

130234

6

Jam Nut

130235

7

Hub Kit

130290

-

Axle Washer

130288

-

Castle Nut

254523

-

Woodruff Key

281860

8

Axle Cap

130292

9

Right Control Arm

724268

10

Left Control Arm

724269

11

Whiz Bolt

253200

12

Whiz Nut

253043

13

Brake Rod

645117

14

Hex Bolt

243215

15

Bypass Valve Lever

770004

16

Cotter Pin

260648

17

Sheave

415536

18

Square Key

281582

19

1” Shaft Electric Clutch

388750

20

Hex Bolt

243470

21

Lock Washer

257422

22

Anti-Rotation Bracket

725123

23

Clutch Bracket Cover

422088

24

Idler Arm Assembly

824478

25

Oilite Bearing

121756

26

Pedestal Bearing

121650

27

Washer

257062

28

Idler

393195

29

Hex Bolt

243580

30

Whiz Nut

253066

31

Torsion Spring

284428

32

Belt Tensioner Bracket

729733

33

Flange Whiz Hex Bolt

253192

34

Hex Bolt

243360

35

Washer

257040

36

Transmission Belt

381944

37

Whiz Nut

253035

38

Right Steering Pivot Assembly

604856

39

Left Steering Pivot Assembly

604857

40

Sleeve Bearing w/Flange

422559

41

Sleeve Bearing w/Flange

422556

42

Sleeve Bearing

422557

43

Hex Bolt

243197

44

Steering Lever Adjustment Mount

643926

45

Compression Spring

283324

46

Washer

257063

47

Nylon Insert Nut

253470

48

.25 THK Spacer

902297

49

Left Female Rod End

265651

50

Hex Bolt

243210

51

Ball Stud

265680

52

Right Damper Mount Bracket

729770

53

Left Damper Mount Bracket

729771

54

Reverse Damper w/Ball Socket

285032

55

200V Standard Steering Lever Assembly

605741

56

Handle Grip

422179

57

.75” ID Vinyl Cap

422095

58

Flanged Whiz Hex Bolt

253195

59

Steering Rod

780171

60

Right Female Rod End

265650

61

Nut

254441

62

Nut

254444

63

Hex Bolt

243210

64

Right Steering Switch Mount

720160

65

Left Steering Switch Mount

720161

66

Lever Switch

183860

67

Machine Screw

250318

68

Nut

254400

Return to 226V-G4 Index Return to Top
