Genuine OEM Grasshopper® Mower Parts Diagrams

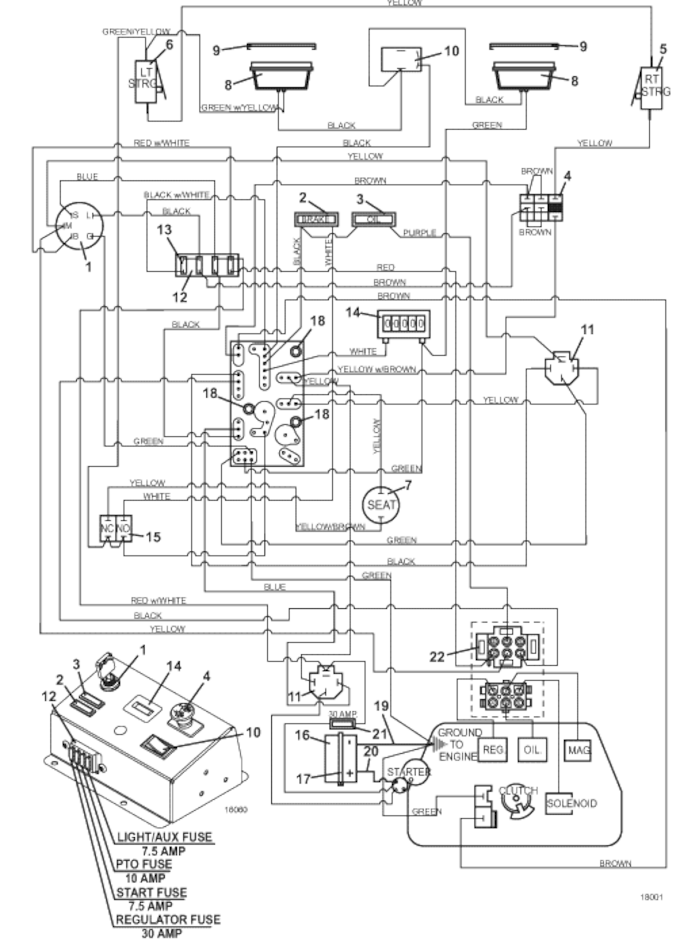

226V-G4 • Electrical Wiring
2018
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
Key Switch B & S/Kohler |
183806 |
- |
Key Ignition w/Cover |
101101 |
- |
.250 Push-On Type 1 Terminal |
184578 |
- |
.250 Push-On Terminal |
184580 |
- |
5-Way Type 9 Connector |
184925 |
- |
Nut |
254498 |
- |
Panel Plastic |
422078 |
2 |
Brake Light Indicator |
182326 |
3 |
Oil Indicator Light |
182327 |
4 |
Push/Pull Switch |
183925 |
- |
9-Way Connector |
184942 |
5 |
Lever Switch |
183860 |
- |
Right Steering Switch Mount |
720160 |
6 |
Lever Switch |
183860 |
- |
Left Steering Switch Mount |
720161 |
7 |
Twist-In Seat Switch |
183871 |
8 |
LED Flood Worklamp |
182261 |
9 |
Snap Mount Worklamp Bezel |
182251 |
10 |
Rocker Switch |
184179 |
11 |
12 Volt DC Relay w/Mt |
184271 |
12 |
Fuse Block |
181720 |
- |
Fuse ID Decal |
162320 |
- |
Fuse Block Cover |
181721 |
13 |
Auto ATC 30 Amp Fuse |
181470 |
- |
Auto ATC 7.5 Amp Fuse |
181460 |
- |
Auto ATC 10 Amp Fuse |
181462 |
14 |
Snap In Hour Meter |
141551 |
15 |
Interlock Plunger Switch |
183894 |
16 |
12 Volt Sidepost Wet Battery |
180130 |
- |
126 Batter Mount |
723062 |
17 |
Battery Hold Down Strap |
604785 |
18 |
PC Board Support Spacer |
423690 |
19 |
Battery Cable 30” Black |
180290 |
- |
Whiz Nut |
253035 |
- |
Flanged Hex Whiz Bolt |
253193 |
20 |
Red 24” Battery Cable |
180322 |
- |
Red Alternator Terminal Boot |
425215 |
- |
Starter Terminal Boot |
425219 |
21 |
Inline Auto Fuse Holder |
181735 |
- |
30 AMP Auto ATC Fuse |
181470 |
22 |
6 Terminal Connector (AMP) |
184911 |
- |
Pin Mate N-Lock |
181768 |
23 |
200VG4 Wire Assembly |
606845 |
24 |
Console Decal |
161092 |
